AP3139AK Datasheet, Mosfet, APM

AP3139AK Features

  • Mosfet VDS = -20V ID =-0.8A RDS(ON) < 350mΩ @ VGS=-4.5V (Type:290mΩ) ESD=1.6KV HBM Application Battery protection Load switch Uninterruptible power supply Package Marking and Ordering Informa

PDF File Details

Part number:

AP3139AK

Manufacturer:

APM

File Size:

454.69kb

Download:

📄 Datasheet

Description:

-20v p-channel enhancement mode mosfet. The AP3139AK uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as

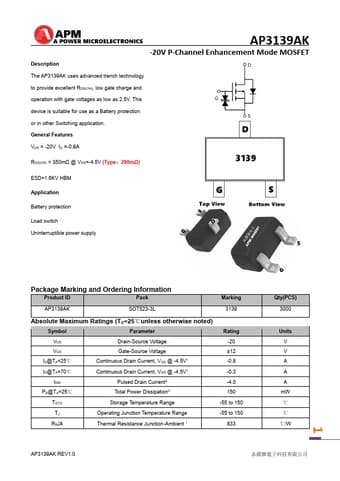

Datasheet Preview: AP3139AK 📥 Download PDF (454.69kb)
Page 2 of AP3139AK Page 3 of AP3139AK

AP3139AK Application

  • Applications , should be limited by total power dissipation. 2 AP3139AK REV1.0 Typical Characteristics AP3139AK -20V P-Channel Enhancement Mod
