APS1086

600mA Synchronous Step-Down Converter

APS1086 Features

* a Power Saving Mode which reduces quiescent current to just 30µA and significantly improves efficiency at light load. The APS1086 is offered in a low profile (1mm) 5-pin, SOT package, and is available in an adjustable version and fixed output voltage of 1.2V, 1.5V and 1.8V. APPLICATIONS

* Ce

APS1086 General Description

The APS1086 is a 2 MHz constant frequency, high efficiency, slope compensated current mode PWM step-down DC-to-DC converter. The device integrates a main switch and a synchronous rectifier for high efficiency without an external Schottky diode. The APS1086 can operate from a 2.5V to 5.5V input volta.

APS1086 Datasheet (97.45 KB)

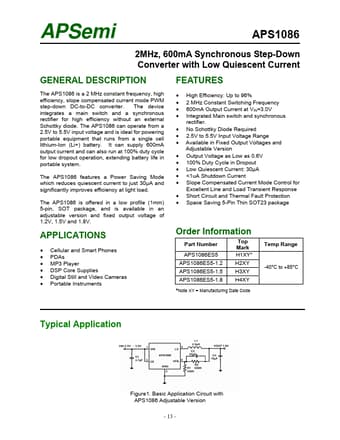

Preview of APS1086 PDF

Datasheet Details

Part number:

APS1086

Manufacturer:

APSemi

File Size:

97.45 KB

Description:

600ma synchronous step-down converter.
