SMD3528 Datasheet - APT

SMD3528 3in1 LED

SMD 3528 3in1 LED SPECIFICATIONS Absolute Maximum Ratings Item DC Forward Current Pulse Forward Current Power Dissipation Reverse Voltage Operating Temperature Symbol IF IFP PD VR Topr Absolute Maximum Rating Red Green Blue 30 30 30 100 100 100 65 100 100 5 - 40 ~ + 105 Storage Temperature Tstg - 40 ~ + 105 Junction Temperature Tj 115 Soldering Temperature Tsld Reflow Soldering:260⁰C<10sec Allowable Reflow Cycles - 3 IFP condition with Pulse: Width≤10ms, Duty.

SMD3528 Datasheet (1.01 MB)

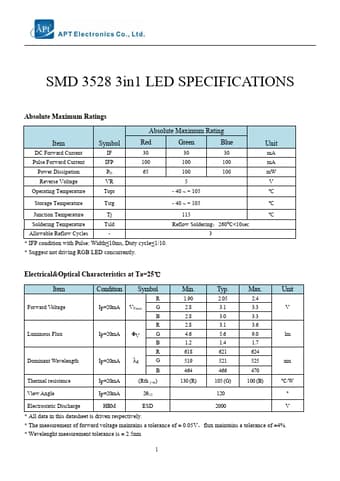

Preview of SMD3528 PDF

Datasheet Details

Part number:

SMD3528

Manufacturer:

APT

File Size:

1.01 MB

Description:

3in1 led.
