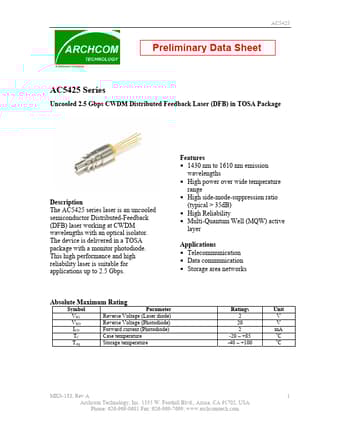

AC5425 Datasheet, Laser, ARCHCOM

AC5425 Features

• Laser
• 1430 nm to 1610 nm emission wavelengths
• High power over wide temperature range
• High side-mode-suppression ratio (typical > 35dB)
• High Reliability

PDF File Details

Part number:

AC5425

Manufacturer:

ARCHCOM

File Size:

174.59kb

Download:

📄 Datasheet

Description:

Uncooled 2.5gbps cwdm distributed feedback laser. The AC5425 series laser is an uncooled semiconductor Distributed-Feedback (DFB) laser working at CWDM wavelengths with an optical iso

AC5425 Application

• Applications up to 2.5 Gbps. Features
• 1430 nm to 1610 nm emission wavelengths
• High power over wide temperature range
