ULN2004AD - 7CH DARLINGTON SINK DRIVER

This page provides the datasheet information for the ULN2004AD, a member of the ULN2003 7CH DARLINGTON SINK DRIVER family.

Datasheet Summary

Features

  • z Output current (single output) 500mA MAX. z High sustaining voltage output 50V MIN. (ULN2003A/AD Series) z Output clamp diodes z Inputs compatible with various types of logic z Package Type-A : DIP-16pin z Package Type-AD : SOP-16pin DIP16-P-300-2.54A ULN2003AD ULN2004AD TYPE ULN2003A/AD ULN2004A/AD INPUT BASE.

📥 Download Datasheet

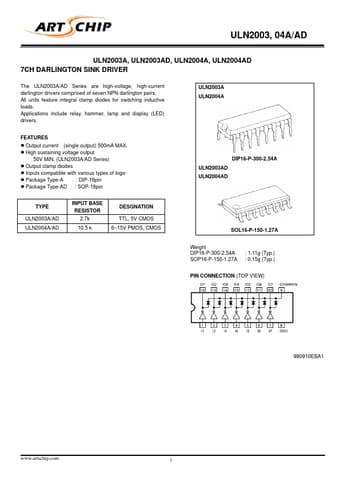

Datasheet preview – ULN2004AD

Datasheet Details

Part number ULN2004AD
Manufacturer ART CHIP
File Size 448.71 KB
Description 7CH DARLINGTON SINK DRIVER
Datasheet download datasheet ULN2004AD Datasheet
Additional preview pages of the ULN2004AD datasheet.

📁 Similar Datasheet

  • ULN2004AD - 7-Digit Darlington Current Driver (HTC)
  • ULN2004A - High-Current Darlington Transistor Arrays (Texas Instruments)
  • ULN2004A - SEVEN DARLINGTON ARRAYS (STMicroelectronics)
  • ULN2004A - HIGH-VOLTAGE/ HIGH-CURRENT DARLINGTON ARRAYS (Allegro MicroSystems)
  • ULN2004A - DARLINGTON TRANSISTOR ARRAYS (Diodes)
  • ULN2004A - HIGH-CURRENT DARLINGTON ARRAYS (Sprague)
  • ULN2004AFW - 7CH DARLINGTON SINK DRIVER (Toshiba Semiconductor)
  • ULN2004AFWG - 7ch Darlington Sink Driver (Toshiba Semiconductor)
  • ULN2004AI - HIGH-VOLTAGE HIGH-CURRENT DARLINGTON TRANSISTOR ARRAY (Texas Instruments)
  • ULN2004AID - HIGH-VOLTAGE HIGH-CURRENT DARLINGTON TRANSISTOR ARRAY (Texas Instruments)
Other Datasheets by ART CHIP

Full PDF Text Transcription

Click to expand full text
ULN2003, 04A/AD ULN2003A, ULN2003AD, ULN2004A, ULN2004AD 7CH DARLINGTON SINK DRIVER The ULN2003A/AD Series are high-voltage, high-current darlington drivers comprised of seven NPN darlington pairs. All units feature integral clamp diodes for switching inductive loads. Applications include relay, hammer, lamp and display (LED) drivers. ULN2003A ULN2004A FEATURES z Output current (single output) 500mA MAX. z High sustaining voltage output 50V MIN. (ULN2003A/AD Series) z Output clamp diodes z Inputs compatible with various types of logic z Package Type-A : DIP-16pin z Package Type-AD : SOP-16pin DIP16-P-300-2.54A ULN2003AD ULN2004AD TYPE ULN2003A/AD ULN2004A/AD INPUT BASE RESISTOR 2.7kȤ 10.5 kȤ DESGNATION TTL, 5V CMOS 6~15V PMOS, CMOS SOL16-P-150-1.27A Weight DIP16-P-300-2.
