ALE0925T2 Datasheet, Lna, ASB

ALE0925T2 Features

  • Lna
  • S21 = 35.5 dB@890 MHz = 34.5 dB@960 MHz
  • NF of 0.65 dB over Frequency
  • Unconditionally Stable
  • Single 5 V Supply
  • High OIP3@Low Current De

PDF File Details

Part number:

ALE0925T2

Manufacturer:

ASB

File Size:

500.02kb

Download:

📄 Datasheet

Description:

Internally matched lna. The plerowTM ALE-series is the compactly designed surface-mount module for the use of the LNA with or without the following gain bloc

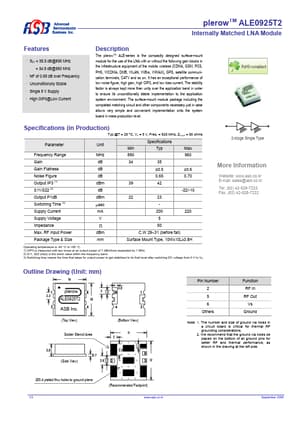

Datasheet Preview: ALE0925T2 📥 Download PDF (500.02kb)
Page 2 of ALE0925T2 Page 3 of ALE0925T2
