ASC709 - Wide Band RF Amplifier

Product Overview

📥 Download Datasheet

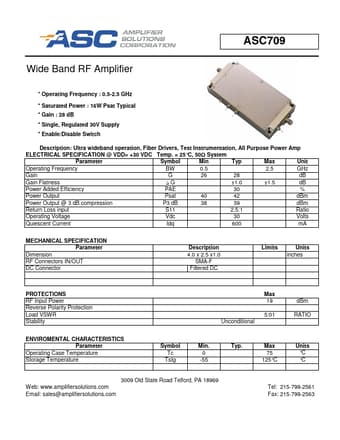

Datasheet preview – ASC709

Datasheet Details

Part number ASC709
Manufacturer ASC
File Size 169.52 KB
Description Wide Band RF Amplifier
Datasheet download datasheet ASC709 Datasheet
Additional preview pages of the ASC709 datasheet.

Product details

Description

Ultra wideband operation, Fiber Drivers, Test Instrumentation, All Purpose Power Amp ELECTRICAL SPECIFICATION @ VDD= +30 VDC Temp.= 25°C, 50Ω System Parameter Symbol Min Typ Max Unit Operating Frequency BW 0.5 2.5 GHz Gain G 26 28 dB Gain Flatness ∆G ±1.0 ±1.5 dB Power Added Efficiency PAE 30 % Power Output Psat 40 42 dBm Power Output @ 3 dB compression P3 dB 38 39 dBm Return Loss input S11 2.5:1 Ratio Operating Voltage Vdc 30 Volts Quiescent Current Idq 60
