AX88796LF, AX88796L 3-in-1 Local CPU Bus Fast Rthernet Controller

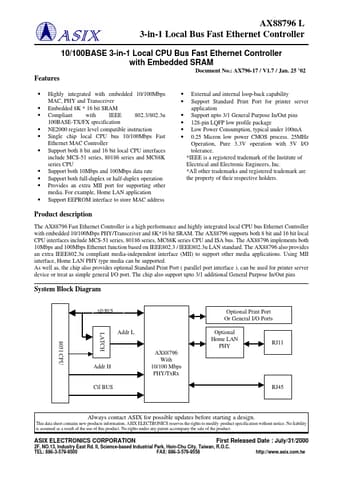

📥 Download Datasheet  Datasheet Preview Page 1

Description

AX88796 L 3-in-1 Local Bus Fast Ethernet Controller 10/100BASE 3-in-1 Local CPU Bus Fast Ethernet Controller with Embedded SRAM Document No.: AX796-17.
The AX88796 Fast Ethernet Controller is a high performance and highly integrated local CPU bus Ethernet Controller with embedded 10/100Mbps PHY/Transc.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AX88796LF, AX88796L. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
AX88796LF, AX88796L
Manufacturer
ASIX Electronics
File Size
1.27 MB
Datasheet
AX88796L_ETC.pdf
Description
3-in-1 Local CPU Bus Fast Rthernet Controller
Note
This datasheet PDF includes multiple part numbers: AX88796LF, AX88796L.
Please refer to the document for exact specifications by model.

Features

* Highly integrated with embedded 10/100Mbps MAC, PHY and Transceiver Embedded 8K
* 16 bit SRAM Compliant with IEEE 802.3/802.3u 100BASE-TX/FX specification NE2000 register level compatible instruct

Applications

* Using MII interface, Home LAN PHY type media can be supported. As well as, the chip also provides optional Standard Print Port ( parallel port interface ), can be used for printer server device or treat as simple general I/O port. The chip also support upto 3/1 additional General Purpose In/Out pin
