ASC100N650MT3 Datasheet - AST

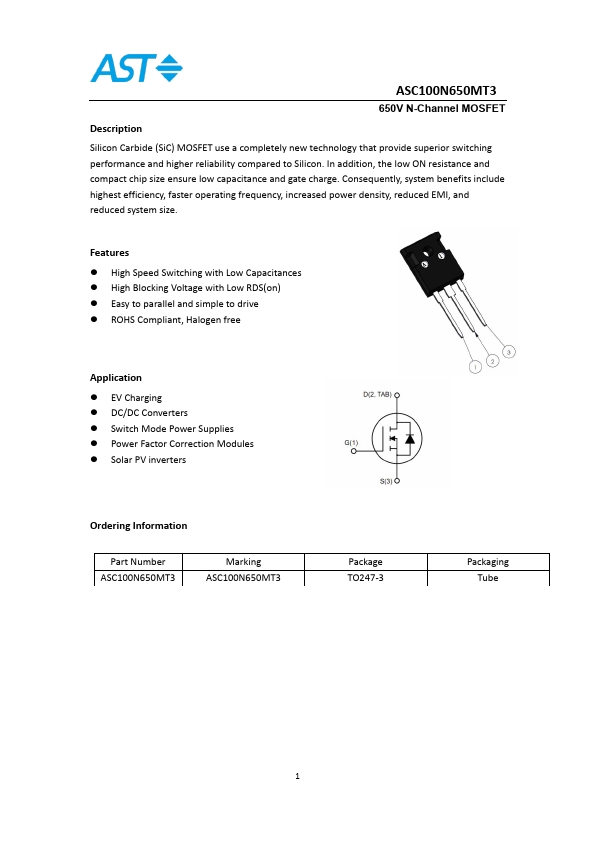

ASC100N650MT3 650V N-Channel MOSFET

Silicon Carbide (SiC) MOSFET use a completely new technology that provide superior switching performance and higher reliability compared to Silicon. In addition, the low ON resistance and compact chip size ensure low capacitance and gate charge. Consequently, system benefits include highest efficien.

ASC100N650MT3 Features

* High Speed Switching with Low Capacitances

* High Blocking Voltage with Low RDS(on)

* Easy to parallel and simple to drive

* ROHS Compliant, Halogen free Application

* EV Charging

* DC/DC Converters

* Switch Mode Power Supplies

* Power Factor Correction Modules

ASC100N650MT3-AST.pdf

ASC100N650MT3 Datasheet Preview — Preview of ASC100N650MT3 PDF

Datasheet Details

Part number:

ASC100N650MT3

Manufacturer:

AST

File Size:

0.99 MB

Description:

650v n-channel mosfet.
