ASC30N650MT4 - 650V N-Channel MOSFET

Product Overview

📥 Download Datasheet

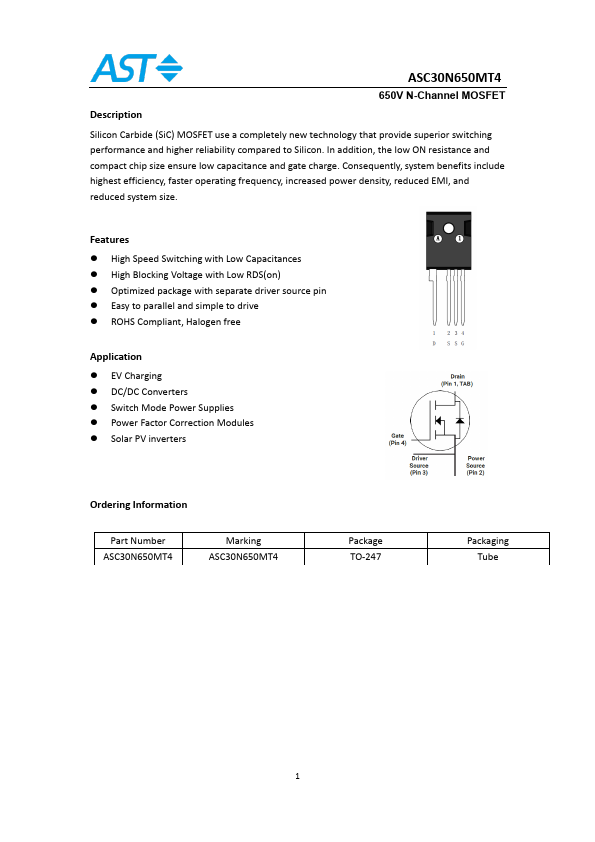

ASC30N650MT4 650V N-Channel MOSFET by AST - Datasheet Preview — Datasheet preview – ASC30N650MT4

Datasheet Details

Part number	ASC30N650MT4
Manufacturer	AST
File Size	928.56 KB
Description	650V N-Channel MOSFET
Datasheet	ASC30N650MT4 Datasheet

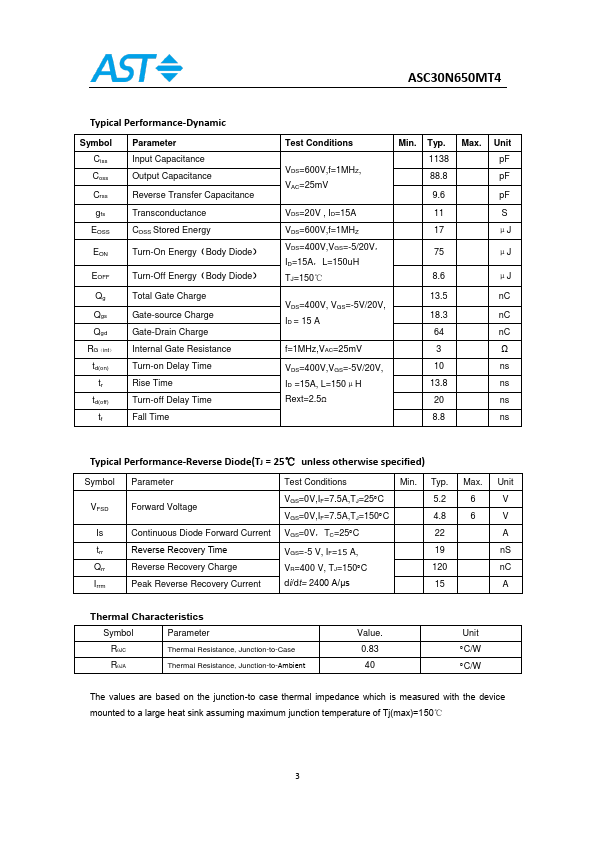

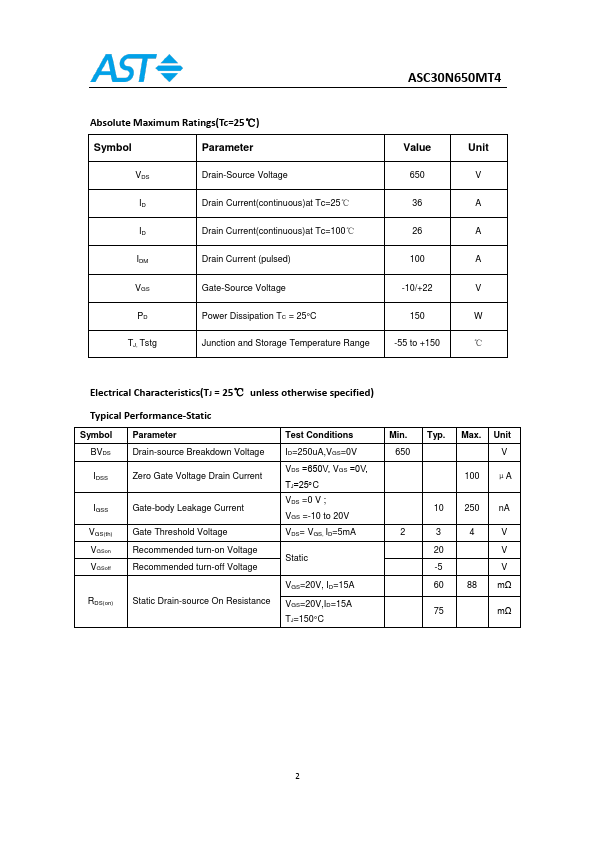

Additional preview pages of the ASC30N650MT4 datasheet.

Product details

Description

Silicon Carbide (SiC) MOSFET use a completely new technology that provide superior switching performance and higher reliability compared to Silicon.

Features

High Speed Switching with Low Capacitances.
High Blocking Voltage with Low RDS(on).
Optimized package with separate driver source pin.
Easy to parallel and simple to drive.
ROHS Compliant, Halogen free.
