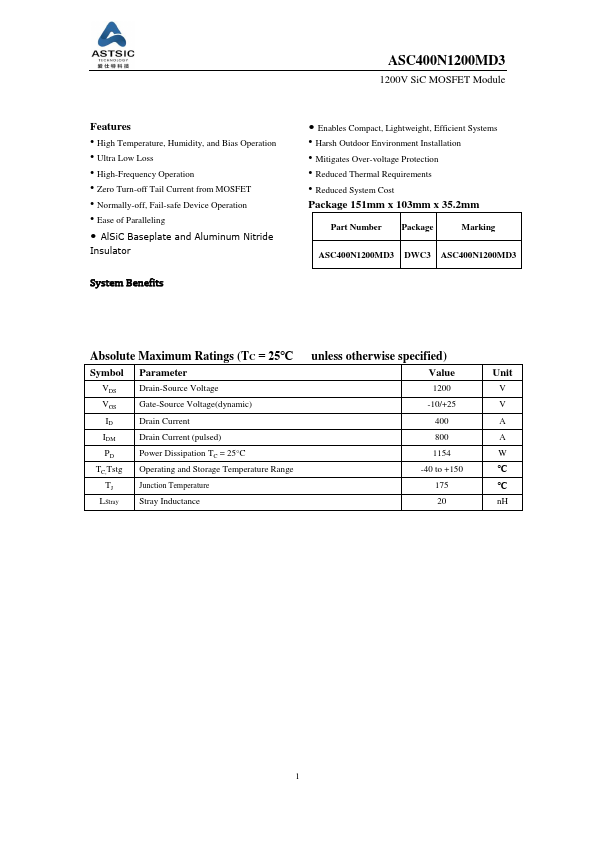

ASC400N1200MD3
Features
- High Temperature, Humidity, and Bias Operation
- Ultra Low Loss
- High-Frequency Operation
- Zero Turn-off Tail Current from MOSFET
- Normally-off, Fail-safe Device Operation
- Ease of Paralleling
- Al Si C Baseplate and Aluminum Nitride
Insulator
System Benefits
- Enables pact, Lightweight, Efficient Systems
- Harsh Outdoor Environment Installation
- Mitigates Over-voltage Protection
- Reduced Thermal Requirements
- Reduced System Cost Package 151mm x 103mm x 35.2mm
Part Number Package
Marking
ASC400N1200MD3 DWC3 ASC400N1200MD3
Absolute Maximum Ratings (TC = 25℃
Symbol Parameter
Drain-Source Voltage
Gate-Source Voltage(dynamic)
Drain Current
Drain Current (pulsed)
Power Dissipation TC = 25°C
TC,Tstg Operating and Storage Temperature Range
Junction Temperature
LStray Stray Inductance unless otherwise specified)
Value
1200 -10/+25
400 800 1154 -40 to +150 175 20
Unit
V V A A W ℃ ℃ n H

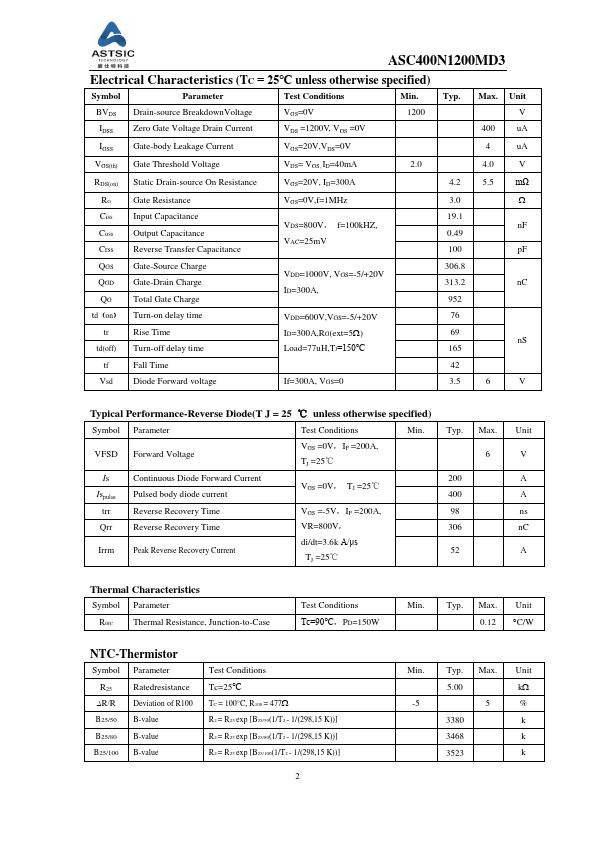

Electrical Characteristics (TC...
