AT03400R 30V N-Channel MOSFET

Description

www.atcsemi.com AT03400R 30V N-Channel MOSFET .

📥 Download Datasheet

AT03400R Datasheet Preview — Preview of AT03400R PDF

Datasheet Specifications

Part number: AT03400R
Manufacturer: ATC Semiconductor
File Size: 1.49 MB
Datasheet: AT03400R-ATCSemiconductor.pdf
Description: 30V N-Channel MOSFET

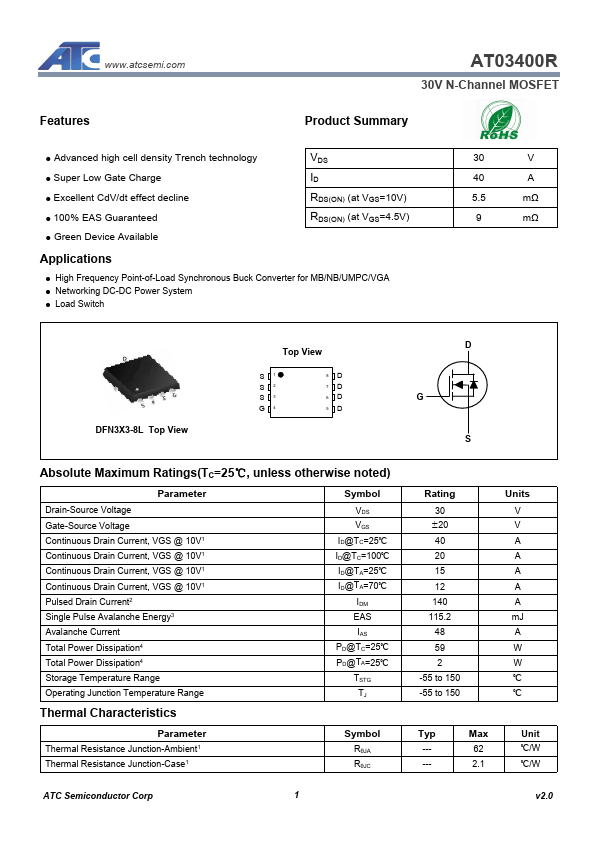

Features

* Product Summary
* Advanced high cell density Trench technology
* Super Low Gate Charge
* Excellent CdV/dt effect decline
* 100% EAS Guaranteed

Applications

* High Frequency Point-of-Load Synchronous Buck Converter for MB/NB/UMPC/VGA
* Networking DC-DC Power System
* Load Switch 30 V 40 A 5.5 mΩ 9 mΩ DFN3X3-8L Top View Top View S1 S2 S3 G4 8D 7D 6D 5D D G S Absolute Maximum Ratings(TC=25℃, unless otherwise noted) Parameter Dra
