AT03900P 30V N-Channel MOSFET

ATC Semiconductor

Description

www.atcsemi.com AT03900P 30V N-Channel MOSFET .

📥 Download Datasheet

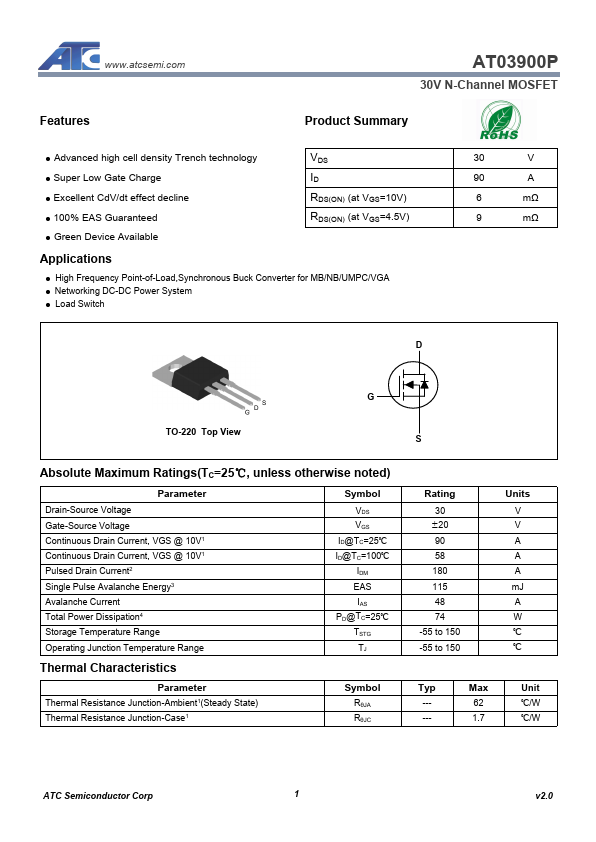

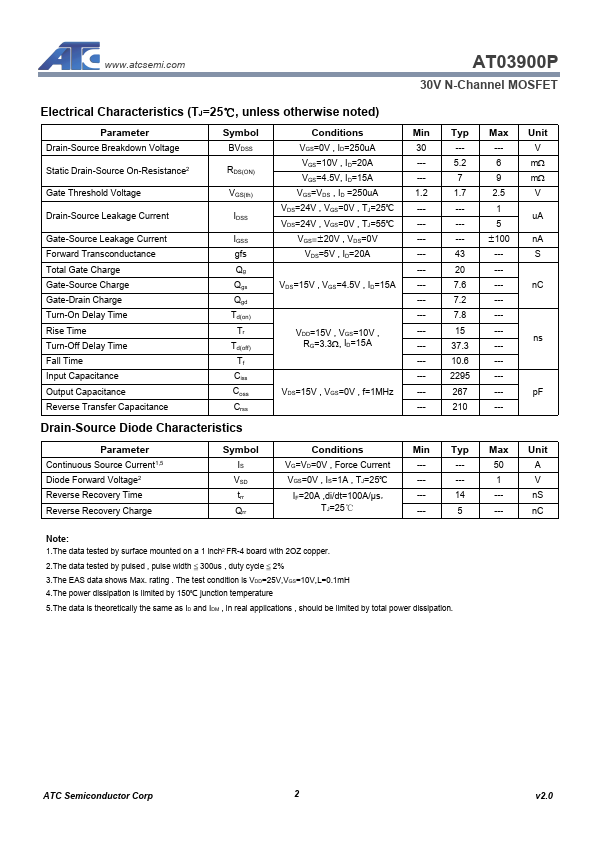

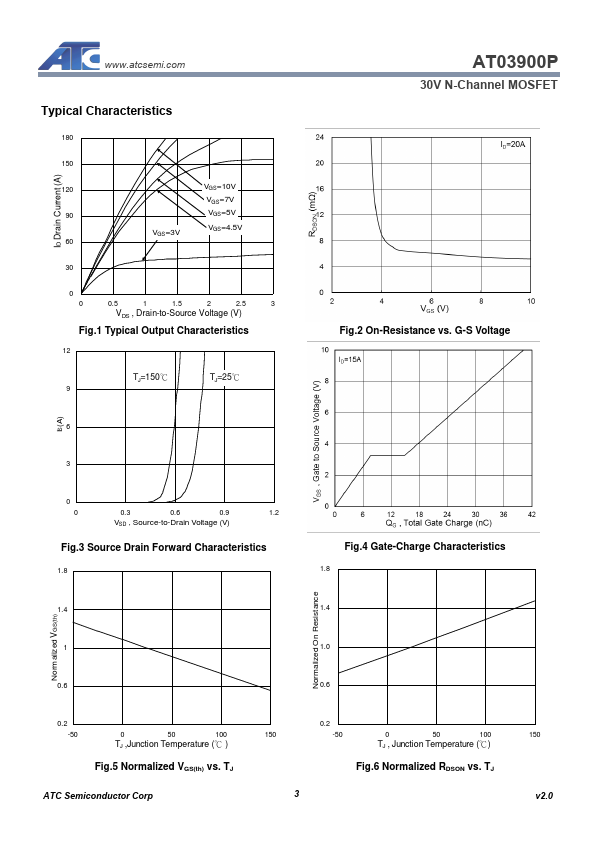

AT03900P Datasheet Preview — Preview of AT03900P PDF

Datasheet Specifications

Part number: AT03900P
Manufacturer: ATC Semiconductor
File Size: 1.41 MB
Datasheet: AT03900P-ATCSemiconductor.pdf
Description: 30V N-Channel MOSFET

Features

* Product Summary
* Advanced high cell density Trench technology
* Super Low Gate Charge
* Excellent CdV/dt effect decline
* 100% EAS Guaranteed

Applications

* High Frequency Point-of-Load,Synchronous Buck Converter for MB/NB/UMPC/VGA
* Networking DC-DC Power System
* Load Switch 30 V 90 A 6 mΩ 9 mΩ D G DS TO-220 Top View G S Absolute Maximum Ratings(TC=25℃, unless otherwise noted) Parameter Drain-Source Voltage Gate-Source Volta
