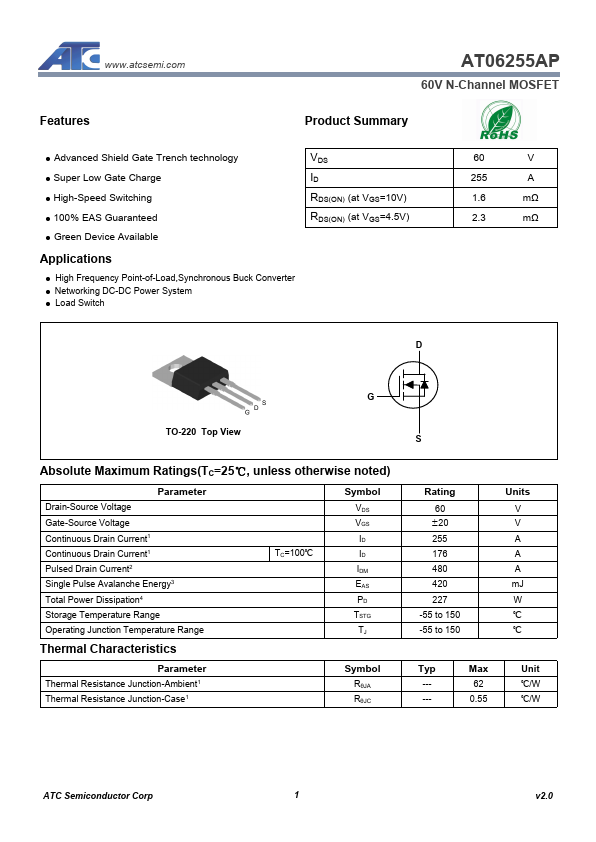

AT06255AP
Features
Product Summary
- Advanced Shield Gate Trench technology
- Super Low Gate Charge
- High-Speed Switching
- 100% EAS Guaranteed
- Green Device Available
Applications
- High Frequency Point-of-Load,Synchronous Buck Converter
- Networking DC-DC Power System
- Load Switch
VDS ID RDS(ON) (at VGS=10V) RDS(ON) (at VGS=4.5V)
1.6 mΩ
2.3 mΩ
G DS
TO-220 Top View
Absolute Maximum Ratings(TC=25℃, unless otherwise noted)
Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current1 Continuous Drain Current1 Pulsed Drain Current2 Single Pulse Avalanche Energy3 Total Power Dissipation4 Storage Temperature Range Operating Junction Temperature Range
TC=100℃
Symbol VDS VGS ID ID IDM EAS PD TSTG TJ
Thermal Characteristics
Parameter Thermal Resistance Junction-Ambient1 Thermal Resistance Junction-Case1
Symbol RθJA RθJC
Rating 60 ±20 255 176 480 420 227
-55 to 150 -55 to 150
Units V V A A A m J W ℃ ℃
Typ
Max
Unit
---
℃/W
---

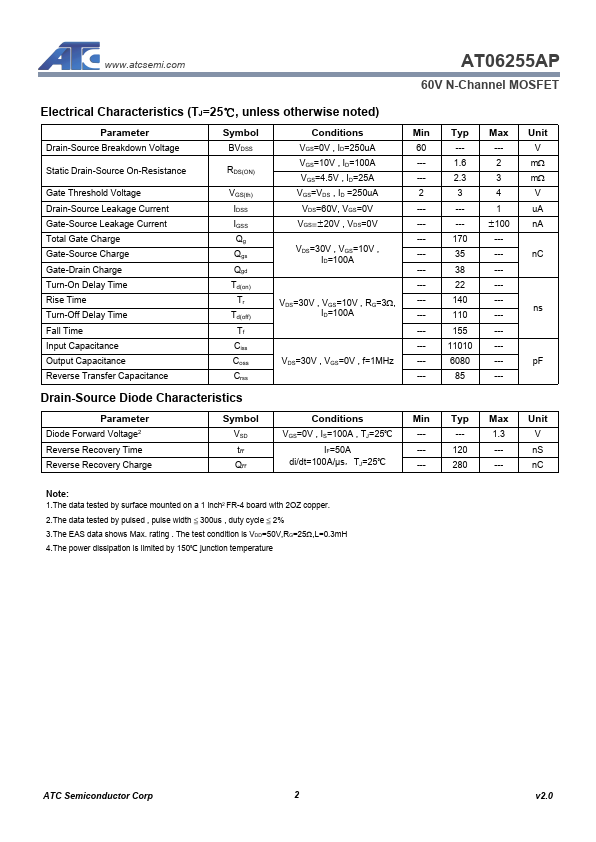

℃/W...
