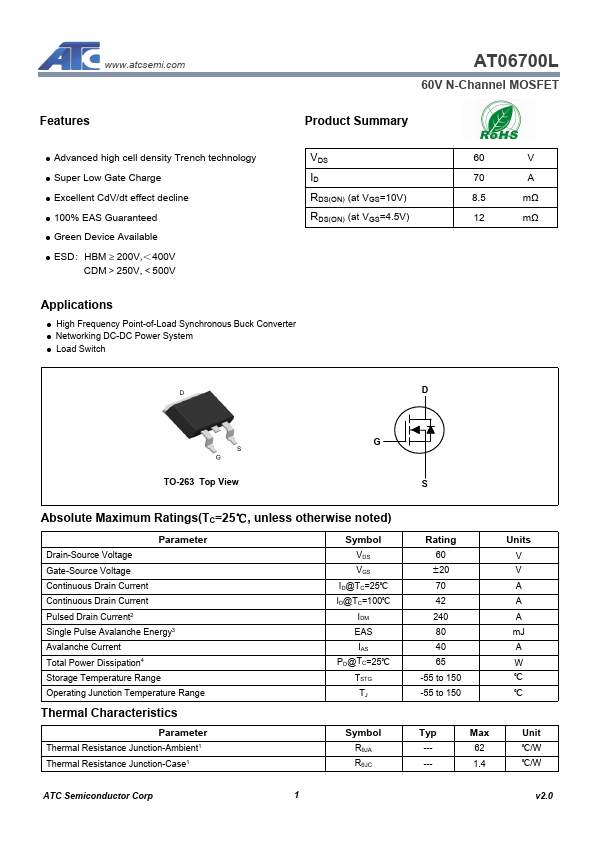

AT06700L
Features
Product Summary
- Advanced high cell density Trench technology
- Super Low Gate Charge
- Excellent Cd V/dt effect decline
- 100% EAS Guaranteed
- Green Device Available
- ESD：HBM ≥ 200V,＜400V
CDM＞250V,＜500V
VDS ID RDS(ON) (at VGS=10V) RDS(ON) (at VGS=4.5V)
8.5 mΩ
12 mΩ
Applications
- High Frequency Point-of-Load Synchronous Buck Converter
- Networking DC-DC Power System
- Load Switch
TO-263 Top View
Absolute Maximum Ratings(TC=25℃, unless otherwise noted)
Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Continuous Drain Current Pulsed Drain Current2 Single Pulse Avalanche Energy3 Avalanche Current Total Power Dissipation4 Storage Temperature Range Operating Junction Temperature Range
Symbol VDS VGS
ID@TC=25℃ ID@TC=100℃
IDM EAS IAS PD@TC=25℃ TSTG
Thermal Characteristics
Parameter Thermal Resistance Junction-Ambient1 Thermal Resistance Junction-Case1
Symbol RθJA RθJC
ATC Semiconductor Corp
Rating 60...
