AT4407 30V P-Channel MOSFET

Description

www.atcsemi.com AT4407 30V P-Channel MOSFET .

📥 Download Datasheet

AT4407 Datasheet Preview — Preview of AT4407 PDF

Datasheet Specifications

Part number: AT4407
Manufacturer: ATC Semiconductor
File Size: 2.17 MB
Datasheet: AT4407-ATCSemiconductor.pdf
Description: 30V P-Channel MOSFET

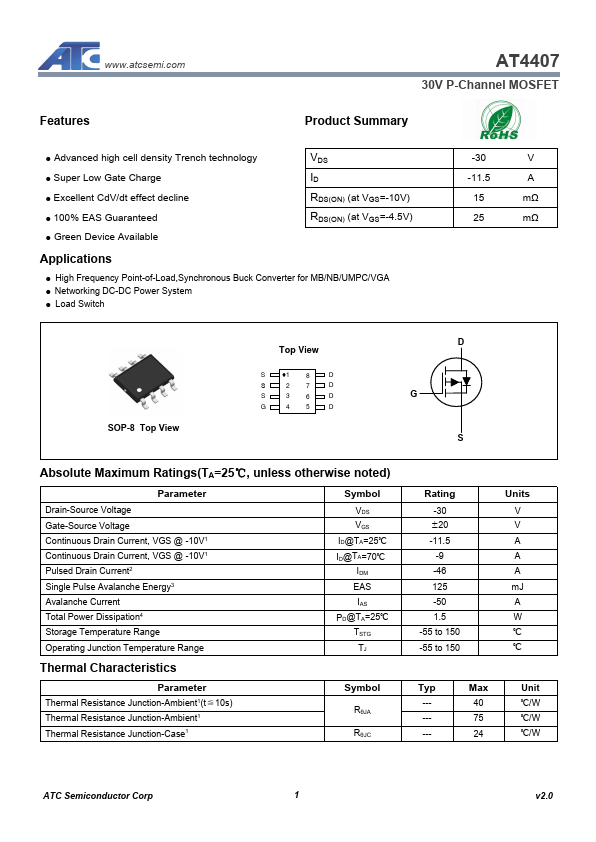

Features

* Product Summary
* Advanced high cell density Trench technology
* Super Low Gate Charge
* Excellent CdV/dt effect decline
* 100% EAS Guaranteed

Applications

* High Frequency Point-of-Load,Synchronous Buck Converter for MB/NB/UMPC/VGA
* Networking DC-DC Power System
* Load Switch -30 V -11.5 A 15 mΩ 25 mΩ SOP-8 Top View Top View S 18 D S 27 D S 36 D G 45 D D G S Absolute Maximum Ratings(TA=25℃, unless otherwise noted)
