90S8535 8-Bit Microcontroller with 4K/8K Bytes In-System Programmable Flash

The AT90S4434/8535 is a low-power CMOS 8-bit microcontroller based on the AVR® enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the AT90S4434/8535 achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus .

90S8535 Features

* Utilizes the AVR ® Enhanced RISC Architecture AVR - High Performance and Low Power RISC Architecture 118 Powerful Instructions - Most Single Clock Cycle Execution 8K bytes of In-System Programmable Flash AT90S/LS8535 4K bytes of In-System Programmable Flash AT

90S8535_ATMELCorporation.pdf

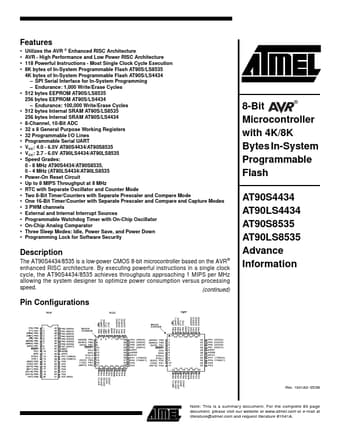

90S8535 Datasheet Preview — Preview of 90S8535 PDF

Datasheet Details

Part number:

90S8535

Manufacturer:

ATMEL Corporation

File Size:

482.33 KB

Description:

8-bit microcontroller with 4k/8k bytes in-system programmable flash.
