AT24C01A - 2-Wire Automotive Serial EEPROM

ATMEL Corporation

The AT24C01A by ATMEL Corporation is a 2-Wire Automotive Serial EEPROM. Below is the official datasheet preview.

📥 Download Datasheet

AT24C01A 2-Wire Automotive Serial EEPROM by ATMEL Corporation - Datasheet Preview — Official preview page of the **AT24C01A** 2-Wire Automotive Serial EEPROM datasheet (ATMEL Corporation).

Datasheet Details

Part number	AT24C01A
Manufacturer	ATMEL Corporation
File Size	294.63 KB
Description	2-Wire Automotive Serial EEPROM
Datasheet	AT24C01A_ATMELCorporation.pdf

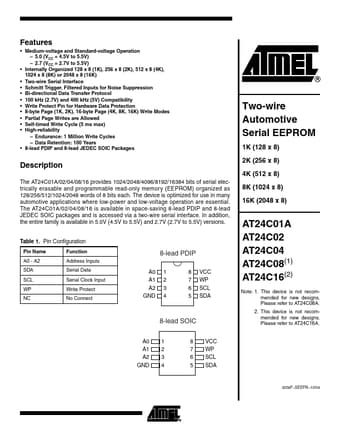

Additional preview pages of the AT24C01A datasheet.

AT24C01A Product details

Description

The AT24C01A/02/04/08/16 provides 1024/2048/4096/8192/16384 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 128/256/512/1024/2048 words of 8 bits each.

Features

Medium-voltage and Standard-voltage Operation.
5.0 (VCC = 4.5V to 5.5V).
2.7 (VCC = 2.7V to 5.5V).
Internally Organized 128 x 8 (1K), 256 x 8 (2K), 512 x 8 (4K), 1024 x 8 (8K) or 2048 x 8 (16K).
Two-wire Serial Interface.
Schmitt Trigger, Filtered Inputs for Noise Suppression.
Bi-directional Data Transfer Protocol.
100 kHz (2.7V) and 400 kHz (5V) Compatibility.
Write Protect Pin for Hardware Data Protection.
