AT25F4096 - 4Mbit High Speed SPI Serial Flash Memory

ATMEL Corporation

📥 Download Datasheet

AT25F4096 Datasheet Preview — Preview of AT25F4096 PDF

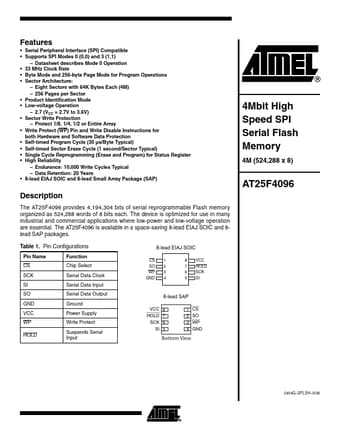

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: AT25F4096
Manufacturer: ATMEL Corporation
File Size: 274.87 KB
Datasheet: AT25F4096_ATMELCorporation.pdf
Description: 4Mbit High Speed SPI Serial Flash Memory

AT25F4096 Product details

Description

The AT25F4096 provides 4,194,304 bits of serial reprogrammable Flash memor

Features

Serial Peripheral Interface (SPI) Compatible.
Supports SPI Modes 0 (0,0) and 3 (1,1).
Datasheet describes Mode 0 Operation.
33 MHz Clock Rate.
Byte Mode and 256-byte Page Mode for Program Operations.
Sector Architecture:.
Eight Sectors with 64K Bytes Each (4M).
256 Pages per Sector.
Product Identification Mode.
Low-voltage Operation.
2.7 (VCC = 2.7V to 3.6V).
Sector Write Protection.
