AT40Kxx - 5K - 50K Gates Coprocessor FPGA

ATMEL Corporation

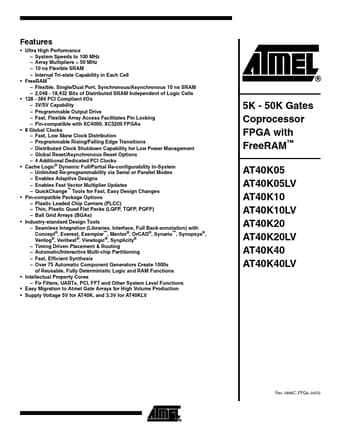

AT40Kxx Datasheet Preview — Preview of AT40Kxx PDF

Datasheet Details

Part number	AT40Kxx
Manufacturer	ATMEL ↗ Corporation
File Size	1.55 MB
Description	5K - 50K Gates Coprocessor FPGA
Datasheet	AT40Kxx_ATMELCorporation.pdf

AT40Kxx Product details

Description

The AT40K/AT40KLV is a family of fully PCI-compliant, SRAM-based FPGAs with distributed 10 ns programmable synchronous/asynchronous, dual-port/single-port SRAM, 8 global clocks, Cache Logic ability (partially or fully reconfigurable without loss of data), automatic component generators, and range in size from 5,000 to 50,000 usable gates.

Features

Ultra High Performance.
System Speeds to 100 MHz.
Array Multipliers > 50 MHz.
10 ns Flexible SRAM.
Internal Tri-state Capability in Each Cell FreeRAM™.
Flexible, Single/Dual Port, Synchronous/Asynchronous 10 ns SRAM.
2,048 - 18,432 Bits of Distributed SRAM Independent of Logic Cells 128 - 384 PCI Compliant I/Os.
3V/5V Capability.
Programmable Output Drive.
Fast, Flexible Array Access Facilitates Pin Lockin.
