AT59C11W-10SI-2.7 - 4-Wire Serial EEPROMs

This page provides the datasheet information for the AT59C11W-10SI-2.7, a member of the AT5 4-Wire Serial EEPROMs family.

Datasheet Summary

Description

The AT59C11/22/13 provides 1024/2048/4096 bits of serial EEPROM (Electrically Erasable Programmable Read Only Memory) organized as 64/128/256 words of 16 bits each, when the ORG Pin is connected to VCC and 128/256/512 words of 8 bits each when it is tied to ground.

Features

  • Low Voltage and Standard Voltage Operation.
  • 5.0 (VCC = 4.5V to 5.5V).
  • 2.7 (VCC = 2.7V to 5.5V).
  • 2.5 (VCC = 2.5V to 5.5V) User Selectable Internal Organization.
  • 1K: 128 x 8 or 64 x 16.
  • 2K: 256 x 8 or 128 x 16.
  • 4K: 512 x 8 or 256 x 16 4-Wire Serial Interface Self-Timed Write Cycle (10 ms max) High Reliability.
  • Endurance: 1 Million Write Cycles.
  • Data Retention: 100 Years.
  • ESD Protection: >4000V 8-Pin PDIP and.

📥 Download Datasheet

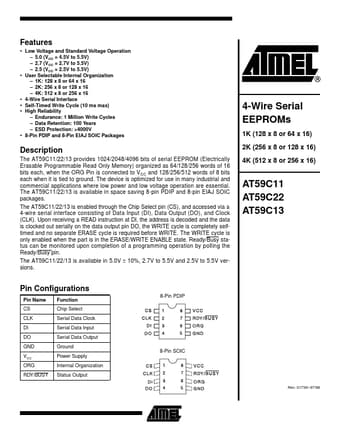

Datasheet preview – AT59C11W-10SI-2.7
