AT83C5112 - 8-bit Microcontroller with A/D Converter

This page provides the datasheet information for the AT83C5112, a member of the AT8 8-bit Microcontroller with A/D Converter family.

Datasheet Summary

Description

The AT8xC5112 is a high performance ROM/OTP version of the 80C51 8-bit microcontroller.

Features

  • 80C51 Compatible.
  • Five I/O Ports.
  • Two 16-bit Timer/Counters.
  • 256 Bytes RAM 8K Bytes ROM/OTP Program Memory with 64 Bytes Encryption Array and 3 Security Levels High-Speed Architecture.
  • 33 MHz at 5V (66 MHz Equivalent).
  • X2 Speed Improvement Capability (6 Clocks/Machine Cycle) 10-bit, 8 Channels A/D Converter Hardware Watchdog Timer with Reset-out Programmable I/O Mode: Standard C51, Input Only, Push-pull, Open Drain Asynchronous Port Reset Fu.

📥 Download Datasheet

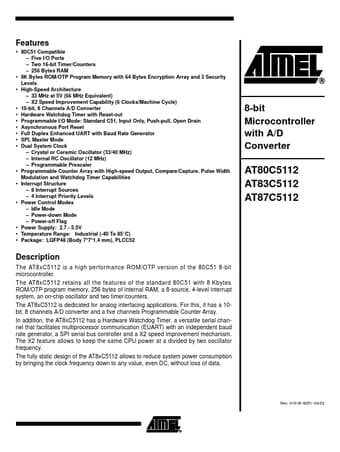

Datasheet preview – AT83C5112
