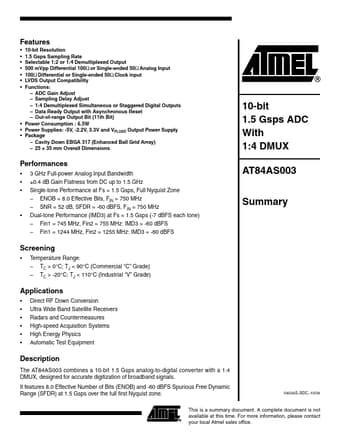

AT84AS003
Features
- -
- -
- -
- 10-bit Resolution 1.5 Gsps Sampling Rate Selectable 1:2 or 1:4 Demultiplexed Output 500 m Vpp Differential 100Ω or Single-ended 50Ω Analog Input 100Ω Differential or Single-ended 50Ω Clock input LVDS Output patibility Functions:
- ADC Gain Adjust
- Sampling Delay Adjust
- 1:4 Demultiplexed Simultaneous or Staggered Digital Outputs
- Data Ready Output with Asynchronous Reset
- Out-of-range Output Bit (11th Bit)
- Power Consumption : 6.5W
- Power Supplies: -5V, -2.2V, 3.3V and VPLUSD Output Power Supply
- Package
- Cavity Down EBGA 317 (Enhanced Ball Grid Array)
- 25 × 35 mm Overall Dimensions
10-bit 1.5 Gsps ADC With 1:4 DMUX AT84AS003 Summary
Performances
- -
- 3 GHz Full-power Analog Input Bandwidth ±0.4 d B Gain Flatness from DC up to 1.5 GHz Single-tone Performance at Fs = 1.5 Gsps, Full Nyquist Zone
- -
- -
- ENOB = 8.0 Effective Bits, FIN = 750 MHz SNR = 52 d B, SFDR = -60 d BFS, FIN = 750 MHz Fin1 = 745 MHz, Fin2 = 755 MHz: IMD3 = -60 d BFS Fin1 = 1244 MHz,...
