AT91CAP9SC500A, AT91CAP9SC250A Datasheet - ATMEL Corporation

AT91CAP9SC500A (AT91CAP9SC250A / AT91CAP9SC500A) Customizable Microcontroller Processor

The AT91CAP9SC500A/AT91CAP9SC250A family is based on the integration of an ARM926EJ-S processor with fast ROM and SRAM memories, and a wide range of peripherals. By providing up to 500K gates of metal programmable logic, AT91CAP9SC500A/AT91CAP9SC250A is the ideal platform for creating custom designs.

AT91CAP9SC500A Features

* Incorporates the ARM926EJ-S™ ARM® Thumb® Processor

* DSP Instruction Extensions, ARM Jazelle® Technology for Java® Acceleration

* 16 Kbyte Data Cache, 16 Kbyte Instruction Cache, Write Buffer

* 220 MIPS at 200 MHz

* Memory Management Unit

* EmbeddedI

AT91CAP9SC250A_ATMELCorporation.pdf

This datasheet PDF includes multiple part numbers: AT91CAP9SC500A, AT91CAP9SC250A. Please refer to the document for exact specifications by model.

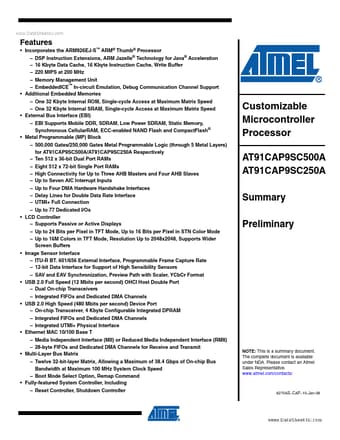

AT91CAP9SC500A Datasheet Preview Page 2 AT91CAP9SC500A Datasheet Preview Page 3

Datasheet Details

Part number:

AT91CAP9SC500A, AT91CAP9SC250A

Manufacturer:

ATMEL Corporation

File Size:

1.64 MB

Description:

(at91cap9sc250a / at91cap9sc500a) customizable microcontroller processor.

Note:

This datasheet PDF includes multiple part numbers: AT91CAP9SC500A, AT91CAP9SC250A.
Please refer to the document for exact specifications by model.
