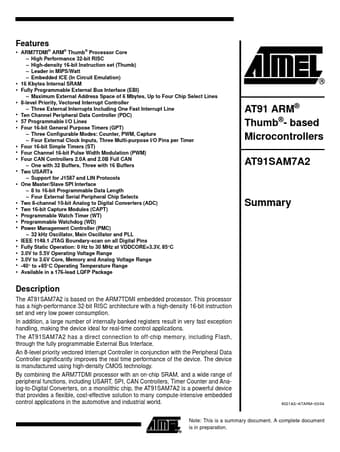

AT91SAM7A2 Datasheet Preview — Preview of AT91SAM7A2 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: AT91SAM7A2
Manufacturer: ATMEL Corporation
File Size: 143.76 KB
Datasheet: AT91SAM7A2_ATMELCorporation.pdf
Description: ARM Thumb - based Microcontrollers

AT91SAM7A2 Product details

Description

The AT91SAM7A2 is based on the ARM7TDMI embedded processor..

Features

ARM7TDMI® ARM® Thumb® Processor Core.
High Performance 32-bit RISC.
High-density 16-bit Instruction set (Thumb).
Leader in MIPS/Watt.
Embedded ICE (In Circuit Emulation) 16 Kbytes Internal SRAM Fully Programmable External Bus Interface (EBI).
Maximum External Address Space of 6 Mbytes, Up to Four Chip Select Lines 8-level Priority, Vectored Interrupt Controller.
Three External Interrupts Including One Fast Interrupt Line Ten Channel.
