AT91SAM9G20 - AT91 ARM Thumb Microcontrollers

ATMEL Corporation

📥 Download Datasheet

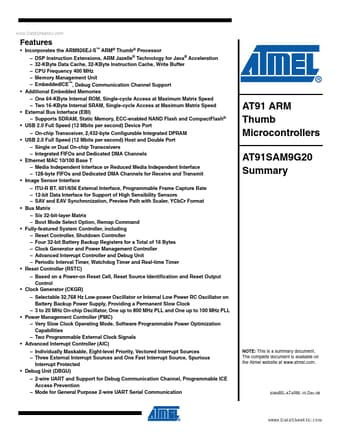

AT91SAM9G20 Datasheet Preview — Preview of AT91SAM9G20 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	AT91SAM9G20
Manufacturer	ATMEL ↗ Corporation
File Size	771.10 KB
Description	AT91 ARM Thumb Microcontrollers
Datasheet	AT91SAM9G20_ATMELCorporation.pdf

AT91SAM9G20 Product details

Description

The AT91SAM9G20 is based on the integration of an ARM926EJ-S processor with fast ROM and RAM memories and a wide range of peripherals.

Features

Incorporates the ARM926EJ-S™ ARM® Thumb® Processor.
DSP Instruction Extensions, ARM Jazelle® Technology for Java® Acceleration.
32-KByte Data Cache, 32-KByte Instruction Cache, Write Buffer.
CPU Frequency 400 MHz.
Memory Management Unit.
EmbeddedICE™, Debug Communication Channel Support Additional Embedded Memories.
One 64-KByte Internal ROM, Single-cycle Access at Maximum Matrix Speed.
Two 16-KByte Internal SRAM, Single-cy.
