AT91SAM9XE128 (AT91SAM9XExxx) AT91 ARM Thumb Microcontrollers by ATMEL Corporation - Datasheet Preview — Datasheet preview – AT91SAM9XE128

Datasheet Details

Part number	AT91SAM9XE128
Manufacturer	ATMEL Corporation
File Size	1.43 MB
Description	(AT91SAM9XExxx) AT91 ARM Thumb Microcontrollers
Datasheet	AT91SAM9XE128 Datasheet

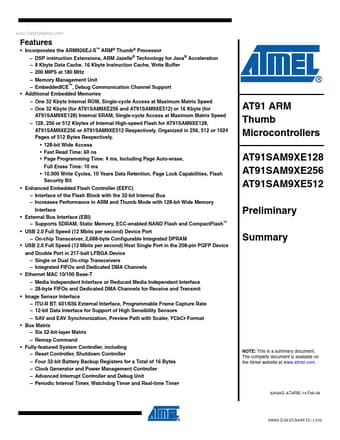

Additional preview pages of the AT91SAM9XE128 datasheet.

Product details

Description

The AT91SAM9XE128/256/512 is based on the integration of an ARM926EJ-S processor with fast ROM and RAM, 128, 256 or 512 Kbytes of Flash and a wide range of peripherals.

Features

Incorporates the ARM926EJ-S™ ARM® Thumb® Processor.
DSP instruction Extensions, ARM Jazelle® Technology for Java® Acceleration.
8 Kbyte Data Cache, 16 Kbyte Instruction Cache, Write Buffer.
200 MIPS at 180 MHz.
Memory Management Unit.
EmbeddedICE™, Debug Communication Channel Support Additional Embedded Memories.
One 32 Kbyte Internal ROM, Single-cycle Access at Maximum Matrix Speed.
One 32 Kbyte (for AT91SAM9XE256 and AT91.
