ATA6827 - High Temperature Triple Half-Bridge Driver

📥 Download Datasheet

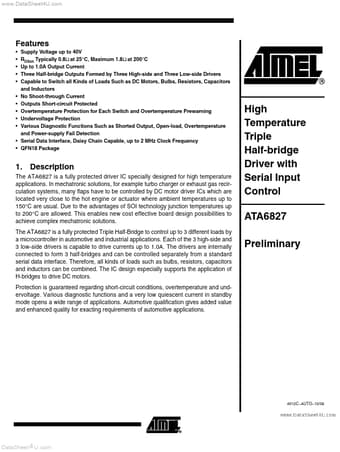

General Description

The ATA6827 is a fully protected driver IC specially designed for high temperature applications.

In mechatronic solutions, for example turbo charger or exhaust gas recirculation systems, many flaps have to be controlled by DC motor driver ICs which are located very close to the hot engine or actuator where ambient temperatures up to 150°C are usual.

Due to the advantages of SOI technology junction temperatures up to 200°C are allowed.

Overview

www.DataSheet4U.com.

Key Features

  • Supply Voltage up to 40V RDSon Typically 0.8Ω at 25°C, Maximum 1.8Ω at 200°C Up to 1.0A Output Current Three Half-bridge Outputs Formed by Three High-side and Three Low-side Drivers Capable to Switch all Kinds of Loads Such as DC Motors, Bulbs, Resistors, Capacitors and Inductors No Shoot-through Current Outputs Short-circuit Protected Overtemperature Protection for Each Switch.
