ATC18RHA

Rad. Hard 0.18 Um CMOS Cell-based ASIC for Space Use

ATC18RHA Features

* Comprehensive Library of Standard Logic and I/O Cells

* ATC18RHA Core and I/O Cells Designed to Operate with VDD = 1.8V Sparing 0.15V as Main Target Operating Conditions IO33 Pad Libraries Provide Interfaces to 3V Environments Memory Cells Compiled to the Precise Requirements of th

ATC18RHA General Description

The Atmel ATC18RHA is fabricated on a proprietary 0.18 µm, up to six-layer-metal CMOS process intended for use with a supply voltage of 1.8V ± 0.15V. Table 1 shows the range for that Atmel library cells have been characterized. Table 1. Recommended Operating Conditions Symbol VDD VDD3.3 VI VO TEMP P.

ATC18RHA Datasheet (69.83 KB)

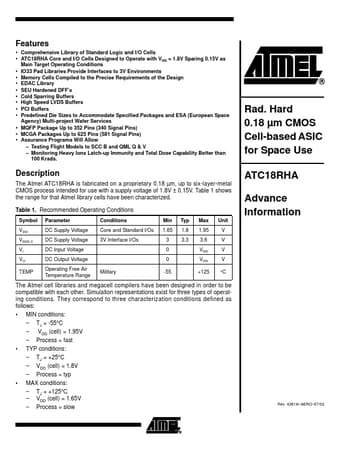

Preview of ATC18RHA PDF

Datasheet Details

Part number:

ATC18RHA

Manufacturer:

ATMEL Corporation

File Size:

69.83 KB

Description:

Rad. hard 0.18 um cmos cell-based asic for space use.
