T89C51RC2

(T89C51RB2/RC2) 8-bit Microcontroller with 16 Kbytes/ 32 Kbytes FLASH

T89C51RC2 Features

* 80C52 Compatible

* 8051 Pin and Instruction Compatible

* Four 8-bit I/O Ports

* Three 16-bit timer/counters

* 256 Bytes Scratch Pad RAM

* 10 Interrupt Sources with 4 Priority Levels

* Dual Data Pointer Variable Length MOVX for slow RAM/Periph

T89C51RC2 General Description

T89C51RB2/RC2 is a high-performance FLASH version of the 80C51 8-bit microcontrollers. It contains a 16K or 32K byte Flash memory block for program and data. The Flash memory can be programmed either in parallel mode or in serial mode with the ISP capability or with software. The programming voltage.

T89C51RC2 Datasheet (1.28 MB)

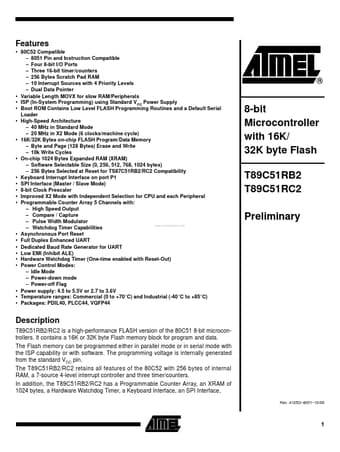

Preview of T89C51RC2 PDF

Datasheet Details

Part number:

T89C51RC2

Manufacturer:

ATMEL Corporation

File Size:

1.28 MB

Description:

(t89c51rb2/rc2) 8-bit microcontroller with 16 kbytes/ 32 kbytes flash.
