24C02 - 2-Wire Serial EEPROM

Product Overview

ATMEL

Datasheet Details

Part number	24C02
Manufacturer	ATMEL
File Size	620.84 KB
Description	2-Wire Serial EEPROM
Datasheet	24C02 Datasheet

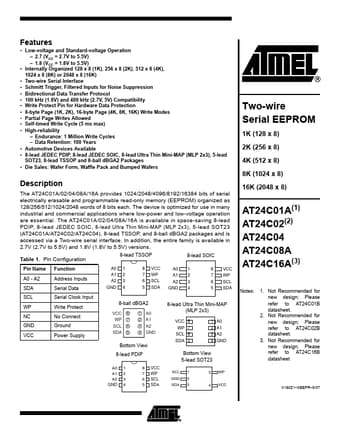

Additional preview pages of the 24C02 datasheet.

Product details

Description

The AT24C01A/02/04/08A/16A provides 1024/2048/4096/8192/16384 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 128/256/512/1024/2048 words of 8 bits each.

Features

Low-voltage and Standard-voltage Operation.
2.7 (VCC = 2.7V to 5.5V).
1.8 (VCC = 1.8V to 5.5V).
Internally Organized 128 x 8 (1K), 256 x 8 (2K), 512 x 8 (4K), 1024 x 8 (8K) or 2048 x 8 (16K).
Two-wire Serial Interface.
Schmitt Trigger, Filtered Inputs for Noise Suppression.
Bidirectional Data Transfer Protocol.
100 kHz (1.8V) and 400 kHz (2.7V, 5V) Compatibility.
Write Protect Pin for Hardware Data Protection.
