AT49F8192T, AT49F8192 Datasheet - ATMEL

AT49F8192T 8-Megabit 5-volt Only CMOS Flash Memory

The AT49F8192 is a 5-volt-only, 8 megabit Flash Memory organized as 512K words of 16 bits each. Manufactured with Atmel's advanced nonvolatile CMOS technology, the device offers access times to 90 ns with power dissipation of just 275 mW. When deselected, the CMOS standby current is less than 300 µA.

AT49F8192T Features

* Single Voltage Operation

* 5V Read

* 5V Reprogramming

* Fast Read Access Time - 90 ns

* Internal Erase/Program Control

* Sector Architecture

* One 8K Words (16K bytes) Boot Block with Programming Lockout

* Two 8K Words (16K bytes) Par

AT49F8192-ATMEL.pdf

This datasheet PDF includes multiple part numbers: AT49F8192T, AT49F8192. Please refer to the document for exact specifications by model.

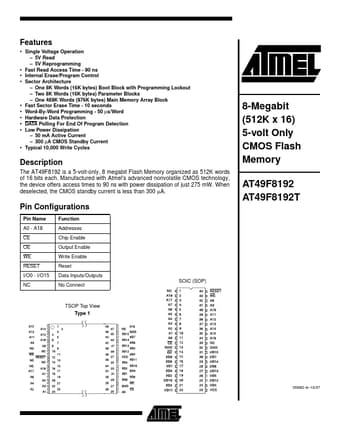

AT49F8192T Datasheet Preview Page 2 AT49F8192T Datasheet Preview Page 3

Datasheet Details

Part number:

AT49F8192T, AT49F8192

Manufacturer:

ATMEL

File Size:

240.85 KB

Description:

8-megabit 5-volt only cmos flash memory.

Note:

This datasheet PDF includes multiple part numbers: AT49F8192T, AT49F8192.
Please refer to the document for exact specifications by model.
