AT88SC1608 Datasheet - ATMEL

AT88SC1608 Secure Memory

Supply Voltage Ground Serial Clock Input Serial Data Input/Output Reset Input ISO Module Contact C1 C5 C3 C7 C2 Card Module Contact8-pin SOIC or PDIP VCC NC GND NC SDA NC 1 2 3 4 St.

AT88SC1608 Features

* One 128 x 8 (1K bit) Configuration Zone

* Eight 256 x 8 (16K bits) User Zones

* Low Voltage Operation: 2.7V to 5.5V

* Two-wire Serial Interface

* 16-byte Page Write Mode

* Self-timed Write Cycle (10 ms max)

* Answer-to-Reset Register

AT88SC1608 Datasheet (309.02 KB)

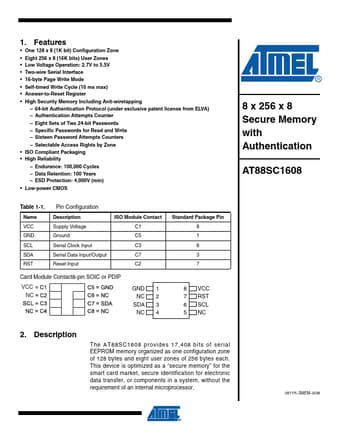

Preview of AT88SC1608 PDF
AT88SC1608 Datasheet Preview Page 2 AT88SC1608 Datasheet Preview Page 3

Datasheet Details

Part number:

AT88SC1608

Manufacturer:

ATMEL

File Size:

309.02 KB

Description:

Secure memory.
