AT89LP51RC2 - 8-bit Flash Microcontroller

This page provides the datasheet information for the AT89LP51RC2, a member of the AT89LP51RB2 8-bit Flash Microcontroller family.

Datasheet Summary

Description

Table 1-1.

I/O P1.5: User-configurable I/O Port 1 bit 5.

I/O MISO: SPI master-in/slave-out.

Features

  • 8-bit Microcontroller Compatible with 8051 Products.
  • Enhanced 8051 Architecture.
  • Single Clock Cycle per Byte Fetch.
  • 12 Clock per Machine Cycle Compatibility Mode.
  • Up to 20 MIPS Throughput at 20 MHz Clock Frequency.
  • Fully Static Operation: 0 Hz to 20 MHz.
  • On-chip 2-cycle Hardware Multiplier.
  • 16x16 Multiply.
  • Accumulate Unit.
  • 256 x 8 Internal RAM.
  • On-chip 1152 Bytes Expanded RAM (ERAM).
  • Softwa.

📥 Download Datasheet

Datasheet preview – AT89LP51RC2

Datasheet Details

Part number AT89LP51RC2
Manufacturer ATMEL
File Size 3.46 MB
Description 8-bit Flash Microcontroller
Datasheet download datasheet AT89LP51RC2 Datasheet
Additional preview pages of the AT89LP51RC2 datasheet.

📁 Similar Datasheet

  • AT89LP2052 - 8-bit Microcontroller (ATMEL Corporation)
  • AT89LP213 - 8-bit Microcontroller (ATMEL Corporation)
  • AT89LP214 - 8-bit Microcontroller (ATMEL Corporation)
  • AT89LP216 - 8-bit Microcontroller (ATMEL Corporation)
  • AT89LP4052 - 8-bit Microcontroller (ATMEL Corporation)
  • AT89LP428 - 8-bit Microcontroller (ATMEL Corporation)
  • AT89LP828 - 8-bit Microcontroller (ATMEL Corporation)
  • AT89LS51 - 8-bit Low-Voltage Microcontroller (ATMEL Corporation)
  • AT89LS52 - 8-bit Low-Voltage Microcontroller (ATMEL Corporation)
  • AT89LS53 - 8-Bit Microcontroller with 12K Bytes Flash (ATMEL Corporation)
Other Datasheets by ATMEL

Full PDF Text Transcription

Click to expand full text

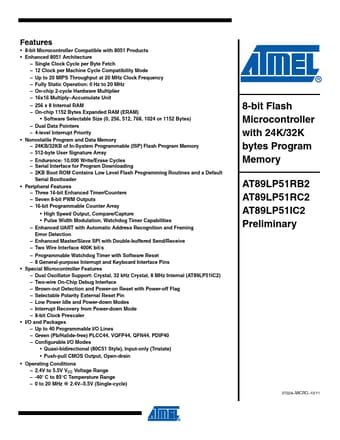

Features • 8-bit Microcontroller Compatible with 8051 Products • Enhanced 8051 Architecture – Single Clock Cycle per Byte Fetch – 12 Clock per Machine Cycle Compatibility Mode – Up to 20 MIPS Throughput at 20 MHz Clock Frequency – Fully Static Operation: 0 Hz to 20 MHz – On-chip 2-cycle Hardware Multiplier – 16x16 Multiply–Accumulate Unit – 256 x 8 Internal RAM – On-chip 1152 Bytes Expanded RAM (ERAM) • Software Selectable Size (0, 256, 512, 768, 1024 or 1152 Bytes) – Dual Data Pointers – 4-level Interrupt Priority • Nonvolatile Program and Data Memory – 24KB/32KB of In-System Programmable (ISP) Flash Program Memory – 512-byte User Signature Array – Endurance: 10,000 Write/Erase Cycles – Serial Interface for Program Downloading – 2KB Boot ROM Contains Low Level Flash Programming Routines a
