ATmega323L - 8-bit Microcontroller

This page provides the datasheet information for the ATmega323L, a member of the ATmega323 8-bit Microcontroller family.

Datasheet Summary

Description

The AVR core combines a rich instruction set with 32 general purpose working registers.

All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle.

Features

  • High-performance, Low-power AVR® 8-bit Microcontroller.
  • Advanced RISC Architecture.
  • 130 Powerful Instructions.
  • Most Single-clock Cycle Execution.
  • 32 x 8 General Purpose Working Registers.
  • Fully Static Operation.
  • Up to 8 MIPS Throughput at 8 MHz.
  • On-chip 2-cycle Multiplier.
  • Non-volatile Program and Data Memories.
  • 32K Bytes of In-System Self-programmable Flash Endurance: 1,000 Write/Erase Cycles.
  • Op.

📥 Download Datasheet

Datasheet preview – ATmega323L

Datasheet Details

Part number ATmega323L
Manufacturer ATMEL
File Size 1.92 MB
Description 8-bit Microcontroller
Datasheet download datasheet ATmega323L Datasheet

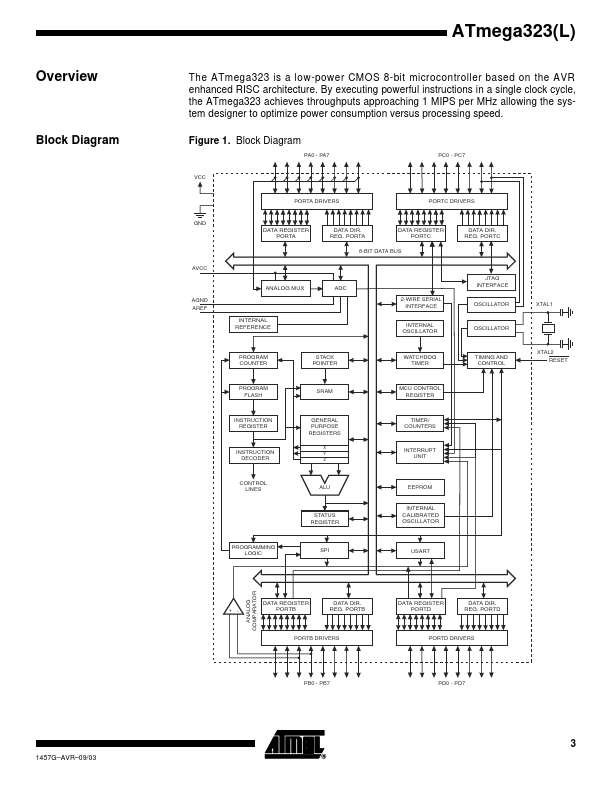

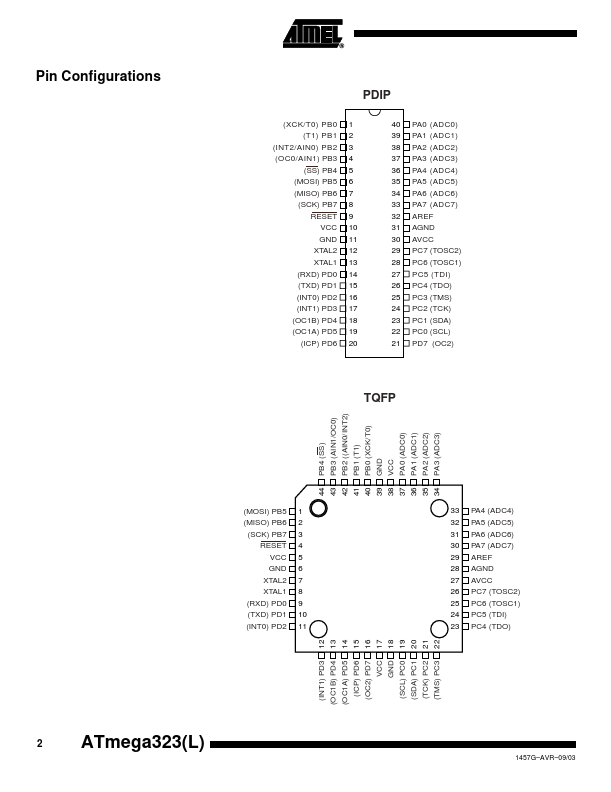

Additional preview pages of the ATmega323L datasheet.

📁 Similar Datasheet

  • ATmega3208 - Microcontrollers (Microchip)
  • ATmega3209 - Microcontrollers (Microchip)
  • ATMEGA324 - 8-bit Microcontroller (ATMEL Corporation)
  • ATmega324A - CMOS 8-bit microcontrollers (Microchip)
  • ATmega324A - 8-bit Atmel Microcontroller (ATMEL Corporation)
  • ATMEGA324P - 8-Bit Microcontroller (ATMEL Corporation)
  • ATmega324PA - CMOS 8-bit microcontrollers (Microchip)
  • ATmega324PA - 8-bit Microcontroller (ATMEL Corporation)
  • ATmega324PB - low-power CMOS 8-bit microcontroller (Microchip)
  • ATMEGA324V - 8-Bit Microcontroller (ATMEL Corporation)
Other Datasheets by ATMEL

Full PDF Text Transcription

Click to expand full text
Features • High-performance, Low-power AVR® 8-bit Microcontroller • Advanced RISC Architecture – 130 Powerful Instructions – Most Single-clock Cycle Execution – 32 x 8 General Purpose Working Registers – Fully Static Operation – Up to 8 MIPS Throughput at 8 MHz – On-chip 2-cycle Multiplier • Non-volatile Program and Data Memories – 32K Bytes of In-System Self-programmable Flash Endurance: 1,000 Write/Erase Cycles – Optional Boot Code Section with Independent Lock Bits In-System Programming by On-chip Boot Program – 1K Byte EEPROM Endurance: 100,000 Write/Erase Cycles – 2K Bytes Internal SRAM – Programming Lock for Software Security • JTAG (IEEE Std. 1149.
