ATmega8HVA - Microcontroller

ATMEL

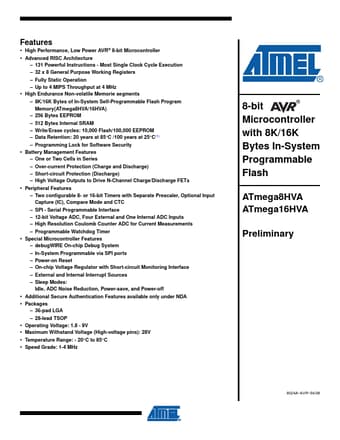

ATmega8HVA Datasheet Preview — Preview of ATmega8HVA PDF

Datasheet Details

Part number	ATmega8HVA
Manufacturer	ATMEL ↗
File Size	1.78 MB
Description	Microcontroller
Datasheet	ATmega8HVA-ATMEL.pdf

ATmega8HVA Product details

Description

1.3.1 VFET 1.3.2 VCC Input to the internal voltage regulator.1.3.3 VREG Digital supply voltage.Normally connected to VREG.1.3.4 Output from the internal voltage regulator.CF1P/CF1N/CF2P/CF2N 1.3.5 VREF CF1P/CF1N/CF2P/CF2N are the connection pins for connecting external fly capacitors to the step-up regulator.1.3.6

Features

High Performance, Low Power AVR® 8-bit Microcontroller.
Advanced RISC Architecture.
131 Powerful Instructions - Most Single Clock Cycle Execution.
32 x 8 General Purpose Working Registers.
Fully Static Operation.
Up to 4 MIPS Throughput at 4 MHz.
High Endurance Non-volatile Memorie segments.
8K/16K Bytes of In-System Self-Programmable Flash Program Memory(ATmega8HVA/16HVA).
256 Bytes EEPROM.
512 Bytes Inte.
