SAM9260

SMART ARM-based Embedded MPU

SAM9260 Features

* 180 MHz ARM926EJ-S™ ARM® Thumb® Processor

* 8 KBytes Data Cache, 8 KBytes Instruction Cache, MMU

* Memories

* 32-bit External Bus Interface supporting 4-bank SDRAM/LPSDR, Static Memories, CompactFlash, SLC NAND Flash with ECC

* Two 4-kbyte internal SRAM, sin

SAM9260 General Description

The SAM9260 is based on the integration of an ARM926EJ-S processor with fast ROM and RAM memories and a wide range of peripherals. The SAM9260 embeds an Ethernet MAC, one USB Device Port, and a USB Host controller. It also integrates several standard peripherals, such as the USART, SPI, TWI, Timer C.

SAM9260 Datasheet (3.50 MB)

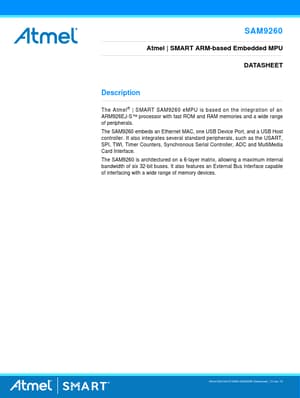

Preview of SAM9260 PDF

Datasheet Details

Part number:

SAM9260

Manufacturer:

ATMEL

File Size:

3.50 MB

Description:

Smart arm-based embedded mpu.
