24C64 - 2-Wire Serial EEPROM

ATMELCorporation

The 24C64 by ATMELCorporation is a 2-Wire Serial EEPROM. Below is the official datasheet preview.

📥 Download Datasheet

24C64 2-Wire Serial EEPROM by ATMELCorporation - Datasheet Preview — Official preview page of the **24C64** 2-Wire Serial EEPROM datasheet (ATMELCorporation).

Datasheet Details

Part number	24C64
Manufacturer	ATMELCorporation
File Size	191.72 KB
Description	2-Wire Serial EEPROM
Datasheet	24C64_ATMELCorporation.pdf

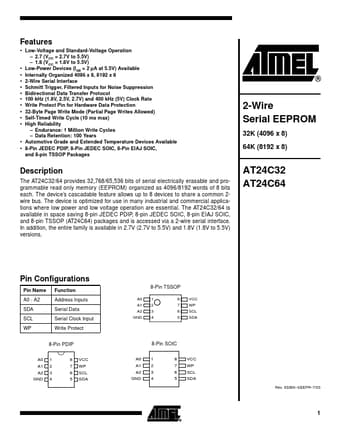

Additional preview pages of the 24C64 datasheet.

24C64 Product details

Description

The AT24C32/64 provides 32,768/65,536 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 4096/8192 words of 8 bits each.

Features

Low-Voltage and Standard-Voltage Operation.
2.7 (VCC = 2.7V to 5.5V).
1.8 (VCC = 1.8V to 5.5V).
Low-Power Devices (ISB = 2 µA at 5.5V) Available.
Internally Organized 4096 x 8, 8192 x 8.
2-Wire Serial Interface.
Schmitt Trigger, Filtered Inputs for Noise Suppression.
Bidirectional Data Transfer Protocol.
100 kHz (1.8V, 2.5V, 2.7V) and 400 kHz (5V) Clock Rate.
Write Protect Pin for Hardware Data Protection.
