AF431XSF - Programmable Voltage Reference (Programmable output voltage to 20 volts)

Datasheet Summary

Features

  • Programmable output voltage to 20 volts Sink current capability of 1.0mA to 100mA Low dynamic impedance 0.15Ω typical Temperature compensated for operation over full rated operating temperature Equivalent full-range temperature coefficient of 50ppm/°C (Typical) Low output Noise voltage Ordering Information Type NO. AF431xSF Marking.
  • 41.
  • : Grade => B : ±0.5%, A : ±1.0% Package Code SOT-23F Outline Dimensions Symbol 2.4±.

📥 Download Datasheet

Datasheet preview – AF431XSF

Datasheet Details

Part number AF431XSF
Manufacturer AUK corp
File Size 363.46 KB
Description Programmable Voltage Reference (Programmable output voltage to 20 volts)
Datasheet download datasheet AF431XSF Datasheet
Additional preview pages of the AF431XSF datasheet.

📁 Similar Datasheet

  • AF431 - High Voltage Adjustable Precision Shunt Regulators (Alfa-MOS)
  • AF431N - High Voltage Adjustable Precision Shunt Regulators (Alfa-MOS)
  • AF432N - High Voltage Adjustable Precision Shunt Regulators (Alfa-MOS)
  • AF4054 - 800mA Lithium Ion Battery Linear Charger (AFSEMI)
  • AF4054B - Linear Li-Ion Battery Charger (AFSEMI)
  • AF4055 - 800mA Lithium Ion Battery Linear Charger (AFSEMI)
  • AF4056E - 1.1A Lithium Ion Battery Linear Charger (AFSEMI)
  • AF4057 - 1.1A Lithium Ion Battery Linear Charger (AFSEMI)
  • AF4064 - Standalone Linear Li-Ion Battery Charger (AFSEMI)
  • AF4407P - P-Channel MOSFET (Anachip)
Other Datasheets by AUK corp
  • AF431 - Programmable Voltage Reference (Programmable output voltage to 20 volts)

Full PDF Text Transcription

Click to expand full text

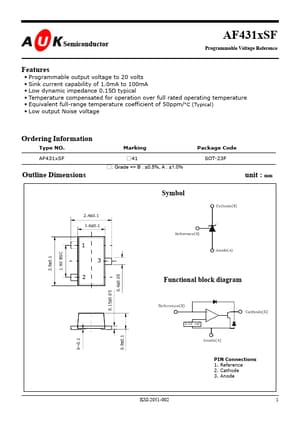

Semiconductor AF431xSF Programmable Voltage Reference Features • • • • • • Programmable output voltage to 20 volts Sink current capability of 1.0mA to 100mA Low dynamic impedance 0.15Ω typical Temperature compensated for operation over full rated operating temperature Equivalent full-range temperature coefficient of 50ppm/°C (Typical) Low output Noise voltage Ordering Information Type NO. AF431xSF Marking □41 □: Grade => B : ±0.5%, A : ±1.0% Package Code SOT-23F Outline Dimensions Symbol 2.4±0.1 1.6±0.1 unit : mm 1 2.9±0.1 1.90 BSC 3 0.4±0.05 2 0.15±0.05 Functional block diagram 0.9±0.1 0~0.1 PIN Connections 1. Reference 2. Cathode 3.
