BC808F - PNP Silicon Transistor

AUK corp

📥 Download Datasheet

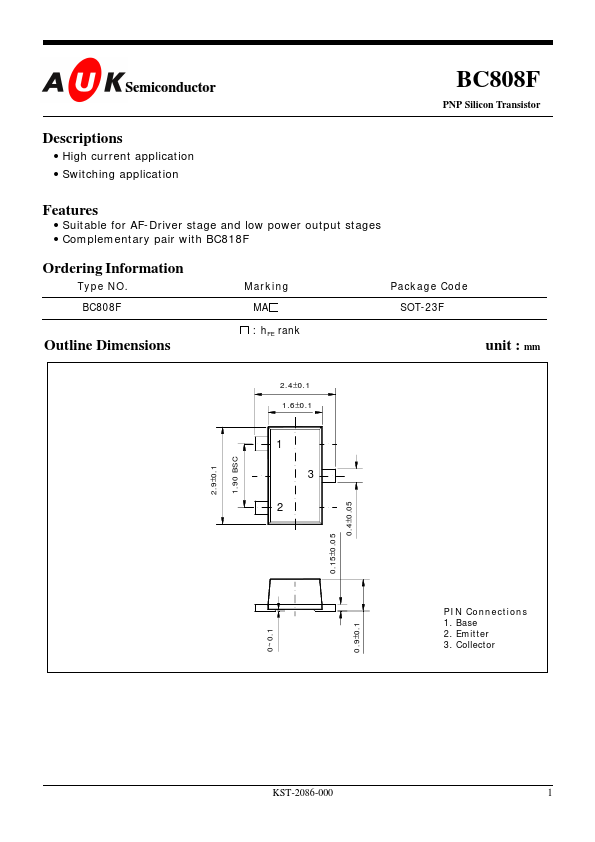

BC808F Datasheet Preview — Preview of BC808F PDF

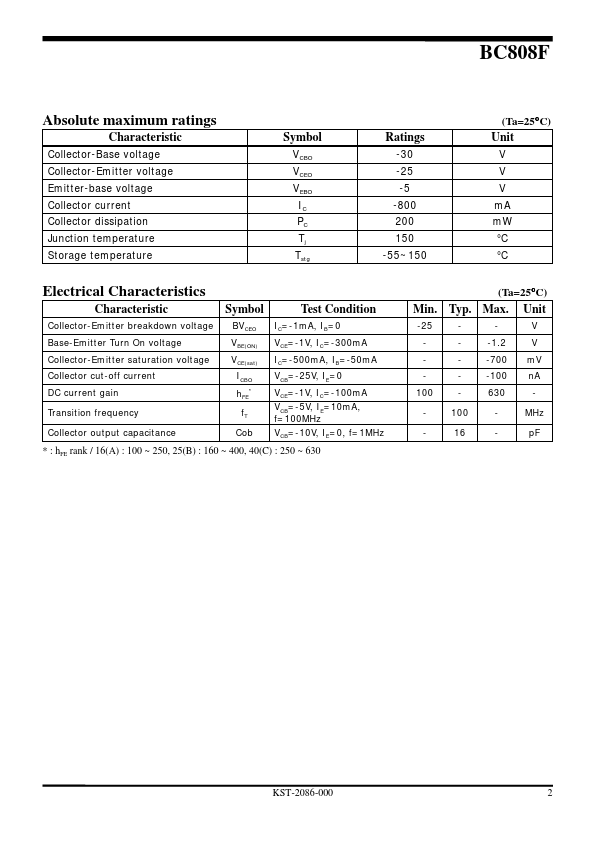

datasheet Preview Page 2

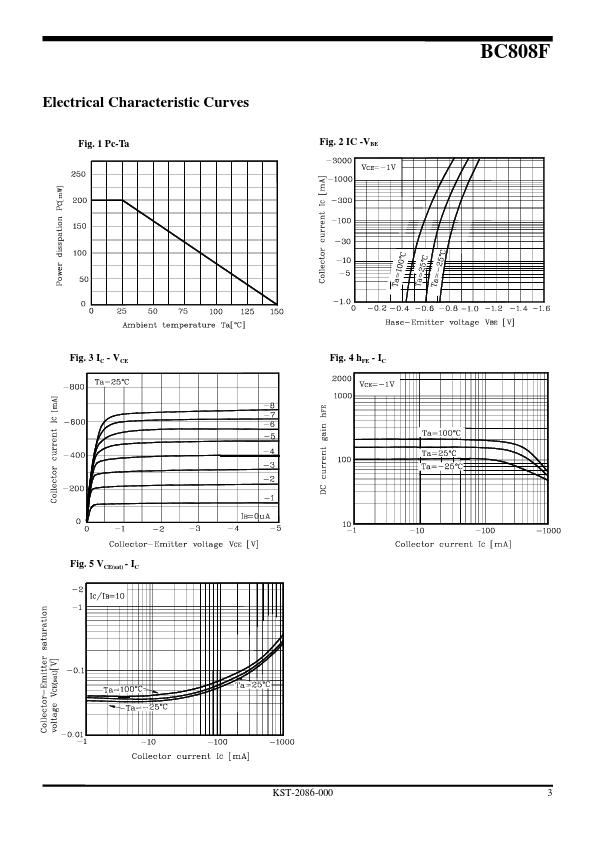

datasheet Preview Page 3

Datasheet Details

Part number	BC808F
Manufacturer	AUK corp
File Size	82.43 KB
Description	PNP Silicon Transistor
Datasheet	BC808F_AUKcorp.pdf

BC808F Product details

Description

High current application Switching application

Features

Suitable for AF-Driver stage and low power output stages.
Complementary pair with BC818F Ordering Information Type NO. BC808F Marking MA : hFE rank Package Code SOT-23F Outline Dimensions 2.4±0.1 1.6±0.1 unit : mm 1 2.9±0.1 1.90 BSC 3 0.4±0.05 2 0.15±0.05 KST-2086-000 0.9±0.1 0~0.1 PIN Connections 1. Base 2. Emitter 3. Collector 1 BC808F (Ta=25°C) Absolute maximum ratings Characteristic Collector-Base voltage Collector-Emitter voltage Emitter-base voltage Collecto.
