BC846U - NPN Silicon Transistor

Datasheet Summary

Description

General purpose application Switching application

Features

  • High voltage : VCEO=55V.
  • Complementary pair with BC856U Ordering Information Type NO. BC846U Marking AS : hFE rank Package Code SOT-323 Outline Dimensions 2.1±0.1 1.25±0.05 unit : mm 1 1.30±0.1 2.0±0.2 3 0.30±0.1 2 0.15±0.05 0.90±0.1 0~0.1 0.1 Min. PIN Connections 1. Base 2. Emitter 3. Collector KST-3018-000 1 BC846U Absolute maximum ratings Characteristic Collector-Base voltage Collector-Emitter voltage Emitter-Base voltage Collector current Collector dissipatio.

📥 Download Datasheet

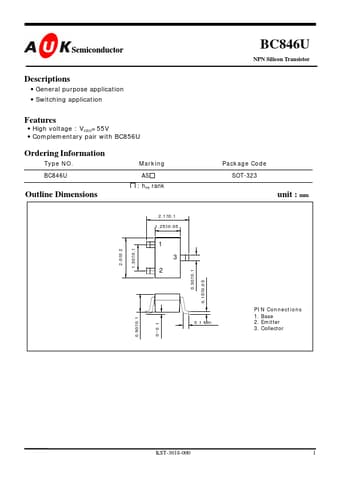

Datasheet preview – BC846U

Datasheet Details

Part number BC846U
Manufacturer AUK corp
File Size 86.42 KB
Description NPN Silicon Transistor
Datasheet download datasheet BC846U Datasheet
Additional preview pages of the BC846U datasheet.
