BC846UF - NPN Silicon Transistor

Datasheet Summary

Description

General purpose application Switching application

Features

  • High voltage : VCEO=55V.

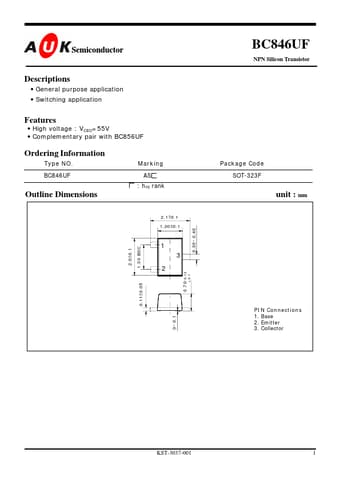

  • Complementary pair with BC856UF Ordering Information Type NO. BC846UF Marking AS : hFE rank Package Code SOT-323F Outline Dimensions 2.1±0.1 0.30~0.40 1.30±0.1 unit : mm 1.30 BSC 2.0±0.1 1 3 0.70-0.15 2 0.11±0.05 +0.1 PIN Connections 1. Base 2. Emitter 3. Collector KST-3037-001 0~0.1 1 BC846UF Absolute maximum ratings Characteristic Collector-Base voltage Collector-Emitter voltage Emitter-Base voltage Collector current Collector dissipati.
