S1117-25PI

Fixed LDO Voltage Regulator

S1117-25PI Datasheet (353.90 KB)

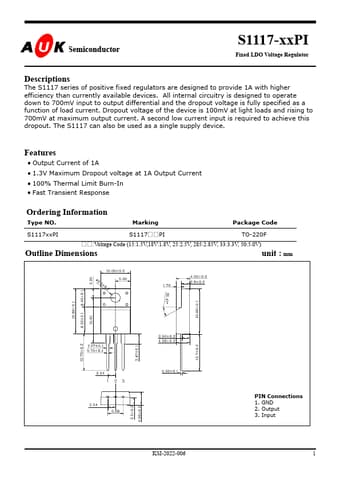

Preview of S1117-25PI PDF

Datasheet Details

Part number:

S1117-25PI

Manufacturer:

AUK corp

File Size:

353.90 KB

Description:

Fixed ldo voltage regulator.

S1117-25PI Features

* Output Current of 1A

* 1.3V Maximum Dropout voltage at 1A Output Current

* 100% Thermal Limit Burn-In

* Fast Transient Response Ordering Information Type NO. S1117xxPI Marking S1117

* PI Package Code TO-220F

* :Voltage Code (15:1.5V,

S1117-25PI General Description

The S1117 series of positive fixed regulators are designed to provide 1A with higher efficiency than currently available devices. All internal circuitry is designed to operate down to 700mV input to output differential and the dropout voltage is fully specified as a function of load current. Dropou.
