S1117-285PI - Fixed LDO Voltage Regulator

Name: S1117-285PI
SKU: S1117-285PI-365545

AUK corp

The S1117-285PI by AUK corp is a Fixed LDO Voltage Regulator. Below is the official datasheet preview.

Datasheet Details

Part number	S1117-285PI
Manufacturer	AUK corp
File Size	353.90 KB
Description	Fixed LDO Voltage Regulator
Datasheet	S1117-285PI_AUKcorp.pdf

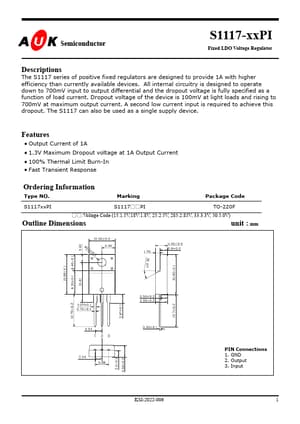

Additional preview pages of the S1117-285PI datasheet.

The S1117 series of positive fixed regulators are designed to provide 1A with higher efficiency than currently available devices.

Output Current of 1A.
1.3V Maximum Dropout voltage at 1A Output Current.
100% Thermal Limit Burn-In.
Fast Transient Response Ordering Information Type NO. S1117xxPI Marking S1117.
PI Package Code TO-220F.
:Voltage Code (15:1.5V,18V:1.8V, 25:2.5V, 285:2.85V, 33:3.3V, 50:5.0V) Outline Dimensions unit : mm PIN Connections 1. GND 2. Output 3. Input KSI-2022-006 1 S1117-xxPI Absolute Maximum Ratings Characteristic Operating.
