S72NXXUF

Standard Voltage Detector

S72NXXUF Features

* Super low current consumption (ICCL = 1.0uA Typ.)

* High current of output transistor (IOL=20mA Typ.)

* Hysteresis circuit built in (△VS=100mV Typ.)

* It has on delay function to supplement the constant of outer C and R. Applications

* Reset circuits for mi

S72NXXUF General Description

The function of this low reset Type IC is to accurately reset systems after detecting the supply voltage at the time of switching power on and instantaneous power off in various CPU and other logic system. Further, this IC, with its super low consumption current is most suited as a voltage check cir.

S72NXXUF Datasheet (342.17 KB)

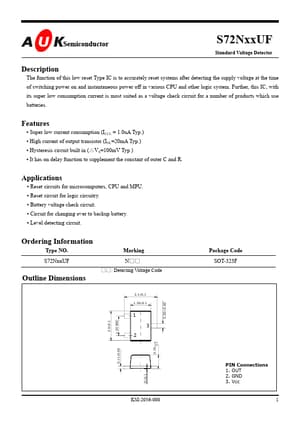

Preview of S72NXXUF PDF

Datasheet Details

Part number:

S72NXXUF

Manufacturer:

AUK corp

File Size:

342.17 KB

Description:

Standard voltage detector.
