S78L05

Positive-Voltage Regulators

S78L05 Features

* of these regulators make them essentially immune to overload. When used as a replacement for a Zener diode-resistor combination, on effective improvement in output impedance can be obtained together with lover-bias current. Features

* 3-Terminal Regulators

* Output Current Up to 100

S78L05 General Description

This series of fixed-voltage monolithic integrated-circuit voltage regulators is designed for a wide range of applications. These applications include on-card regulation for elimination of Noise and distribution problems associated with single-point regulation. In addition, they can be used with po.

S78L05 Datasheet (251.18 KB)

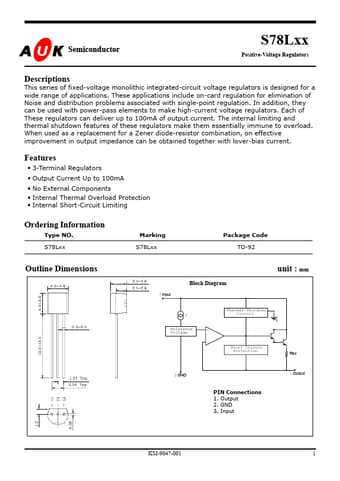

Preview of S78L05 PDF

Datasheet Details

Part number:

S78L05

Manufacturer:

AUK corp

File Size:

251.18 KB

Description:

Positive-voltage regulators.
