SB2335-G - High Brightness Chip LED Lamp

Datasheet Summary

Features

Colorless transparency lens type Compact type Radiation size 3.5mm ×2.8mm Surface mount lead configuration.

AUK corp

📥 Download Datasheet

Datasheet Details

Part number	SB2335-G
Manufacturer	AUK corp
File Size	266.52 KB
Description	High Brightness Chip LED Lamp
Datasheet	SB2335-G Datasheet
Additional preview pages of the SB2335-G datasheet.

📁 Similar Datasheet

SB23 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Gulf Semiconductor)
SB23-A - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Gulf Semiconductor)
SB230 - SCHOTTKY BARRIER RECTIFIER (GOOD-ARK Electronics)
SB230 - 2.0A SCHOTTKY BARRIER DIODE (WON-TOP)
SB230 - SHOTTKY RECTIFIERS (LITE-ON)
SB230 - SCHOTTKY BARRIER RECTIFIERS (PAN JIT)
SB230 - SCHOTTKY RECTIFIER (Sangdest Microelectronics)
SB230 - Schottky Barrier Plastic Rectifier (Vishay)
SB230 - 2 Amp Schottky Rectifier (MCC)
SB230 - Schottky Rectifier (SIRECT)

Other Datasheets by AUK corp

SB2332-H - High Brightness Chip LED Lamp

Full PDF Text Transcription

Click to expand full text

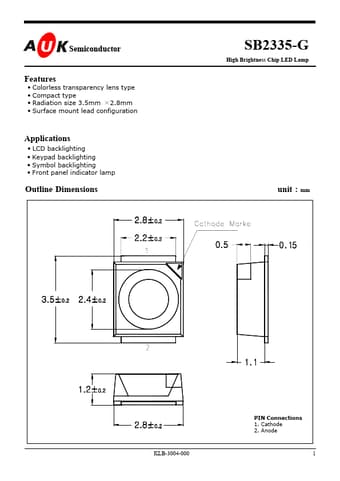

Semiconductor SB2335-G High Brightness Chip LED Lamp Features • • • • Colorless transparency lens type Compact type Radiation size 3.5mm ×2.8mm Surface mount lead configuration Applications • • • • LCD backlighting Keypad backlighting Symbol backlighting Front panel indicator lamp Outline Dimensions unit : mm PIN Connections 1. Cathode 2. Anode KLB-3004-000 1 SB2335-G Absolute maximum ratings Characteristic Power Dissipation Forward Current * Peak Forward Current Reverse Voltage Operating Temperature Storage Temperature 2 1 Symbol PD IF IFP VR Topr Tstg Ratings 80 20 50 4 -40∼100 -40∼110 240℃ for 5 seconds Unit mW mA mA V ℃ ℃ * Soldering Temperature Tsol *1.Duty ratio = 1/16, Pulse width = 0.1ms *2.
