SBC557 - PNP Silicon Transistor

General Description

General purpose application Switching application

Key Features

  • High voltage : VCEO=-45V.

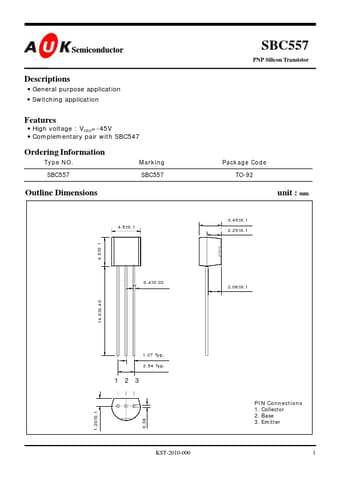

  • Complementary pair with SBC547 Ordering Information Type NO. SBC557 Marking SBC557 Package Code TO-92 Outline Dimensions 3.45±0.1 4.5±0.1 2.25±0.1 unit : mm 4.5±0.1 0.4±0.02 2.06±0.1 14.0±0.40 1.27 Typ. 2.54 Typ. 1 2 3 1.20±0.1 0.38 PIN Connections 1. Collector 2. Base 3. Emitter KST-2010-000 1 SBC557 Absolute maximum ratings Characteristic Collector-Base voltage Collector-Emitter voltage Emitter-Base voltage Collector current Collector.
