S78L05L Positive-Voltage Regulators

S78L05L Description

Semiconductor S78LxxL Positive-Voltage Regulators .
This series of fixed-voltage monolithic integrated-circuit voltage regulators is designed for a wide range of applications.

S78L05L Features

* of these regulators make them essentially immune to overload. When used as a replacement for a Zener diode-resistor combination, on effective improvement in output impedance can be obtained together with lover-bias current. Features
* 3-Terminal Regulators
* Output Current Up to 100m

S78L05L Applications

* These applications include on-card regulation for elimination of Noise and distribution problems associated with single-point regulation. In addition, they can be used with power-pass elements to make high-current voltage regulators. Each of These regulators can deliver up to 100mA of output curren

📥 Download Datasheet

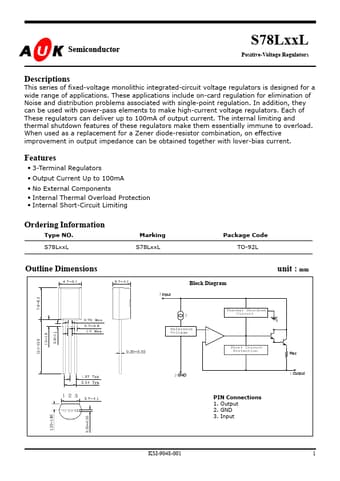

Preview of S78L05L PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S78L05L
Manufacturer
AUK
File Size
250.82 KB
Datasheet
S78L05L-AUK.pdf
Description
Positive-Voltage Regulators
