Part number:
SA3517B
Manufacturer:
AUK
File Size:
236.97 KB
Description:
Led lamp.
* Red Colored diffusion lens type
* φ3mm(T-1) all plastic mold type

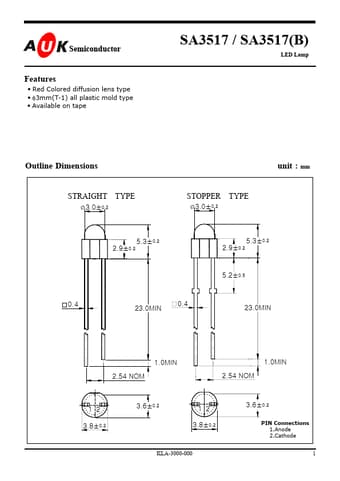

* Available on tape SA3517 / SA3517(B) LED Lamp Outline Dimensions STRAIGHT TYPE 3.0±0.2 STOPPER TYPE 3.0±0.2 unit : mm 5.3±0.2 2.9±0.2 5.3±0.2 2.9±0.2 5.2±0.5 0.4 23.0MIN 0.4 23.0MIN 1.0MIN 2.54 N
SA3517B
AUK
236.97 KB
Led lamp.
